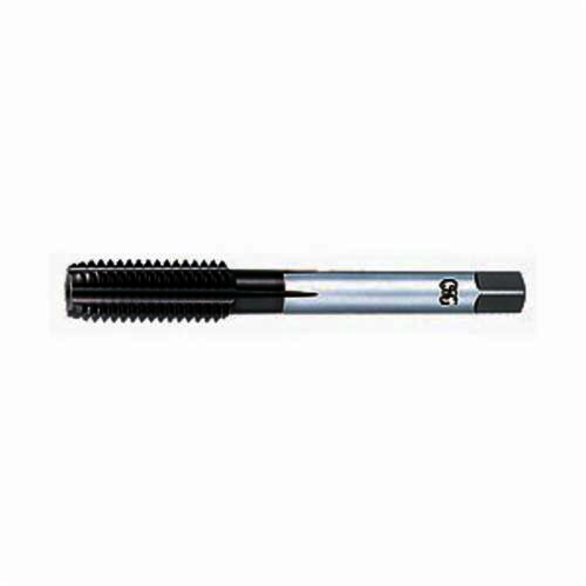

EXOCARB® VX 3110508 311 Straight Flute Hand Tap, Right Hand Cutting, #10-32 Thread, Modified Bottoming Chamfer, 4 Flutes, TiCN Coated, Carbide
OSG 3110508
$232.81
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: #10-32
- Material: Carbide
- Finish/Coating: TiCN Coated
- Number of Flutes: 4
- Class of Fit: 2B
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Flute Type: Straight
- Material Application: Hardened Steel
- Measurement System: Imperial
- Overall Length: 2.755 in
- Overall Length - Metric: 70 mm
- Series: 311
- Square Size: 0.159 in
- Thread Standard: UNF
- Shank Diameter - Decimal: 0.194 in
- Finish: TiCN
For general machine tapping, hand and power tapping for through or blind holes
EXOCARB VX Straight Flute Hand Tap | Series: 311 | Measurement System: Imperial | UNF | #10-32 | Modified Bottoming Chamfer | 4 Flutes | Carbide | TiCN Coated | Class of Fit: 2B | Right Hand Cutting | 7/8 in Thread Length | 70 mm Overall Length | 0.194 in Shank Dia | Hardened Steel Material Application
