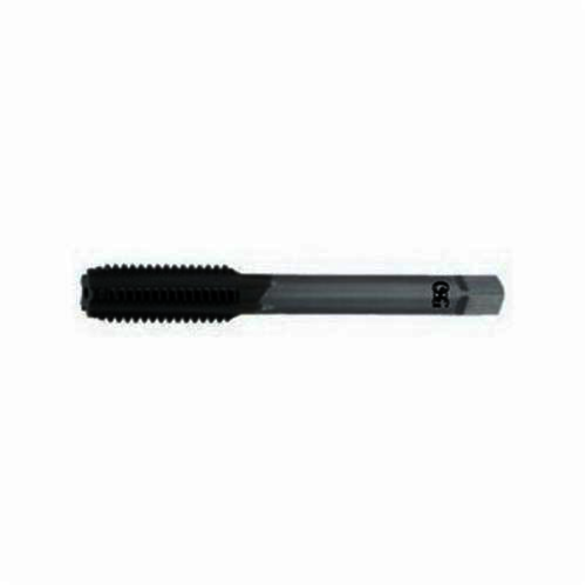

EXOCARB® 3291316 329 Straight Flute Hand Tap, Right Hand Cutting, #6-32 Thread, Modified Bottoming Chamfer, 3 Flutes, Diamond Coated, Carbide
OSG 3291316
$394.31
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: #6-32
- Material: Micrograin Carbide
- Finish/Coating: Diamond Coated
- Number of Flutes: 3
- Class of Fit: 3B
- Chamfer Type: Modified Bottoming
- Cutting Direction: Right Hand
- Finish: DIA
- Flute Type: Straight
- Material Application: Aluminum and Cast Iron
- Measurement System: Imperial
- Overall Length: 2.2047 in
- Overall Length - Metric: 56 mm
- Series: 329
- Shank Diameter - Decimal: 0.141 in
- Shank Length - Fractional: 1-15/32 in
- Thread Standard: UNJC
Standards/Approvals: DIN Rated
For general machine tapping, hand and power tapping for through or blind holes
EXOCARB Straight Flute Hand Tap | Series: 329 | Measurement System: Imperial | UNJC | #6-32 | Modified Bottoming Chamfer | 3 Flutes | Carbide | Diamond Coated | Class of Fit: 3B | Right Hand Cutting | 11/16 in Thread Length | 56 mm Overall Length | 0.141 in Shank Dia | Aluminum and Cast Iron Material Application
