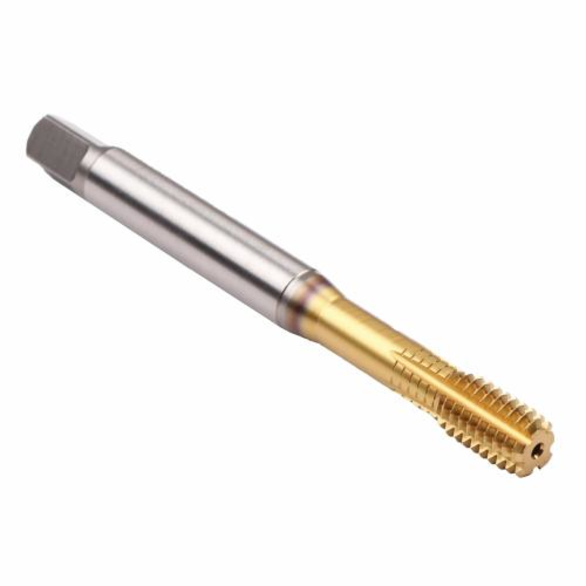

Emuge B523Z700.0080 InnoForm 1-Z-SN-IKZ-PM B523Z700 Form C Reinforced Shank Roll Form Tap With Axial Coolant Through, M8x1.25 Thread
EMUGE B523Z700.0080
$191.11
/ EA
Out of Stock
- Thread Size: M8x1.25
- Thread Standard: MC
- Finish/Coating: TiN 80 Coated
- Material: HSS-E-PM
- Chamfer Type: 2-3 Plug
- Class of Fit: 6HX
- Cutting Direction: Right Hand
- Overall Length - Metric: 90 mm
- Series: InnoForm 1-Z-SN-IKZ-PM B523Z700
- Shank Diameter - Metric: 8 mm
- Square Size - Metric: 6.2 mm
- Thread Length - Metric: 14 mm
- InnoForm Z roll form taps are specifically designed for stainless steel and other low tensile strength materials
- InnoForm taps offer high performance roll form taps
- TiN coating provides additional wear-resistance and reduces cold welding
- Lubrication grooves
- Z designates a tap design for CNC controlled machines with synchronous feed control
- DIN/DIN standard dimensions for overall length and shank size
- Replacement part for old tool B523A800.0080
Standards/Approvals: DIN 13|ISO Certified
For through or blind holes applications
Emuge Roll Form Tap | Form C Reinforced Shank | Series: InnoForm 1-Z-SN-IKZ-PM B523Z700 | Measurement System: Metric | M8x1.25 | MC | 2-3 Plug Chamfer | 14 mm Thread Length | 90 mm Overall Length | Right Hand Cutting | Class of Fit: 6HX | 8 mm Shank Dia | 6.2 mm Square Size | HSS-E-PM | TiN 80 Coated
