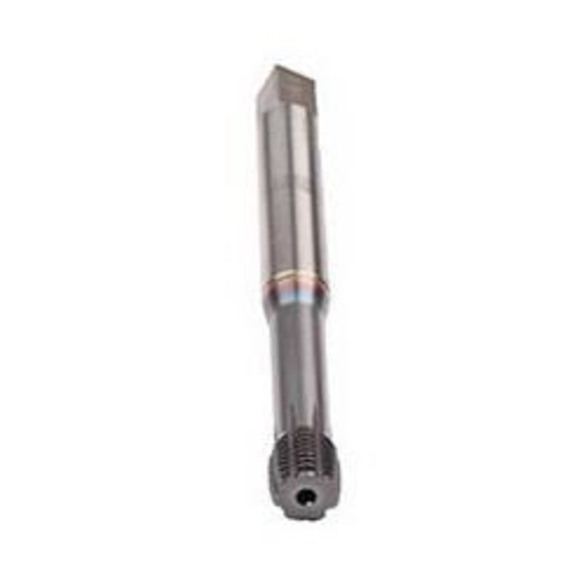

Emuge BU38Q200.5011 InnoForm 1-GAL-SN IKZ BU38Q200 Form C Thread Forming Tap, 3/8-16 Thread
EMUGE BU38Q200.5011
$130.00
/ EA
Out of Stock
- Thread Size: 3/8-16
- Overall Length: 3.937 in
- Thread Standard: UNC
- Finish/Coating: TiN Coated
- Material: HSS-E
- Chamfer Type: Modified Bottoming
- Class of Fit: 2BX
- Cutting Direction: Right Hand
- Series: InnoForm 1-GAL-SN IKZ BU38Q200
- Shank Diameter: 0.381 in
- Shank Length: 2.4 in
- Thread Length: 0.866 in
- The InnoForm GAL roll form tap is designed for specific applications and materials
- GAL designates tools for cast aluminum alloys
- IKZ - axial coolant hole design
- Lubrication grooves
- TiCN coated for wear resistance and added tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
Emuge Thread Forming Tap | Form C | Series: InnoForm 1-GAL-SN IKZ BU38Q200 | Measurement System: Imperial | 3/8-16 | UNC | Modified Bottoming Chamfer | 0.866 in Thread Length | 3.937 in Overall Length | Right Hand Cutting | Class of Fit: 2BX | 0.381 in Shank Dia | 2.4 in Shank Length | HSS-E | TiN Coated
