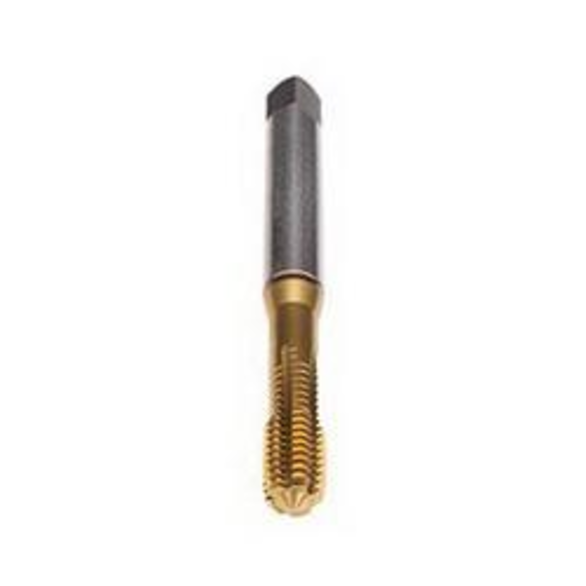

Emuge BU92F000.5043 Druck 1-Z-SNBU92F000 Form C Reinforced Shank Thread Forming Tap, 1/4-28 Thread
EMUGE BU92F000.5043
$81.14
/ EA
Out of Stock
- Thread Size: 1/4-28
- Overall Length: 3.15 in
- Thread Standard: UNF
- Finish/Coating: TiN-T1 Coated
- Material: HSS-E
- Chamfer Type: Modified Bottoming
- Class of Fit: 2BX
- Cutting Direction: Right Hand
- Series: Druck 1-Z-SNBU92F000
- Shank Diameter: 0.255 in
- Square Size: 0.191 in
- Tap Drill Size: 0.2343 in
- Thread Length: 0.669 in
- The druck Z roll form tap is a universal design for the chipless production of internal threads, blind and through hole
- Lubrication grooves
- TiN-T1 coating special multi-layer coatings helps to achieve considerable tool life increases
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|ASME B1.1|DIN 2174|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For threading to the bottom of blind holes
Emuge Thread Forming Tap | Form C Reinforced Shank | Series: Druck 1-Z-SNBU92F000 | Measurement System: Imperial | 1/4-28 | UNF | Modified Bottoming Chamfer | 0.669 in Thread Length | 3.15 in Overall Length | Right Hand Cutting | Class of Fit: 2BX | 0.255 in Shank Dia | 0.2343 in Tap Drill | 0.191 in Square Size | HSS-E | TiN-T1 Coated
