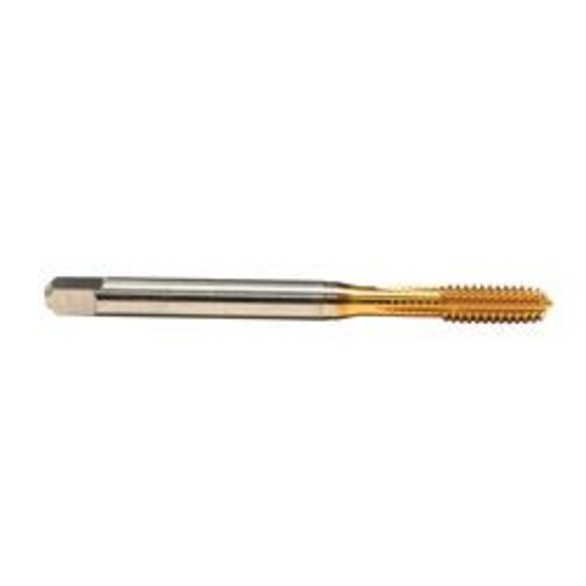

Emuge BU931400.5009 Druck 1-STEEL/E-SN BU931400 Form E Reinforced Shank Thread Forming Tap, 1/4-20 Thread
EMUGE BU931400.5009
$68.31
/ EA
In Stock
- Thread Size: 1/4-20
- Overall Length: 3.15 in
- Thread Standard: UNC
- Finish/Coating: TiN Coated
- Material: HSS-E
- Chamfer Type: Bottoming
- Class of Fit: 2BX
- Cutting Direction: Right Hand
- Series: Druck 1-STEEL/E-SN BU931400
- Shank Diameter: 0.255 in
- Shank Length: 1.97 in
- Square Size: 0.191 in
- Tap Drill Size: 0.2264 in
- Thread Length: 0.669 in
- The druck STEEL roll form tap is a universal design for the chipless production of internal threads, blind and through hole
- Lubrication grooves
- TiN coated for additional tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|ASME B1.1|DIN 2174|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For threading to the bottom of blind holes
Emuge Thread Forming Tap | Form E Reinforced Shank | Series: Druck 1-STEEL/E-SN BU931400 | Measurement System: Imperial | 1/4-20 | UNC | Bottoming Chamfer | 0.669 in Thread Length | 3.15 in Overall Length | Right Hand Cutting | Class of Fit: 2BX | 0.255 in Shank Dia | 1.97 in Shank Length | 0.2264 in Tap Drill | 0.191 in Square Size | HSS-E | TiN Coated
