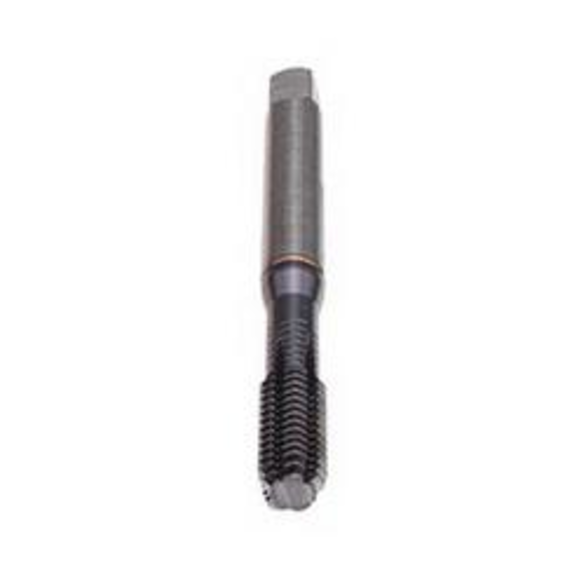

Emuge BU939000.5010 Druck 1-STEEL/E-SN BU939000 Form E Reinforced Shank Thread Forming Tap, 5/16-18 Thread
EMUGE BU939000.5010
$82.78
/ EA
Out of Stock
- Thread Size: 5/16-18
- Overall Length: 3.543 in
- Thread Standard: UNC
- Finish/Coating: TiCN Coated
- Material: HSS-E
- Chamfer Type: Bottoming
- Class of Fit: 2BX
- Cutting Direction: Right Hand
- Series: Druck 1-STEEL/E-SN BU939000
- Shank Diameter: 0.318 in
- Shank Diameter - Decimal: 0.0634 in
- Shank Diameter - Metric: 1.61 mm
- Shank Length: 2.17 in
- Square Size: 0.238 in
- Tap Drill Size: 0.2874 in
- Thread Length: 0.787 in
- The druck STEEL roll form tap is a universal design for the chipless production of internal threads, blind and through hole
- Lubrication grooves
- TiCN coated for wear resistance and additional tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|ASME B1.1|DIN 2174|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For threading to the bottom of blind holes
Emuge Thread Forming Tap | Form E Reinforced Shank | Series: Druck 1-STEEL/E-SN BU939000 | Measurement System: Imperial | 5/16-18 | UNC | Bottoming Chamfer | 0.787 in Thread Length | 3.543 in Overall Length | Right Hand Cutting | Class of Fit: 2BX | 0.318 in Shank Dia | 2.17 in Shank Length | 0.2874 in Tap Drill | 0.238 in Square Size | HSS-E | TiCN Coated
