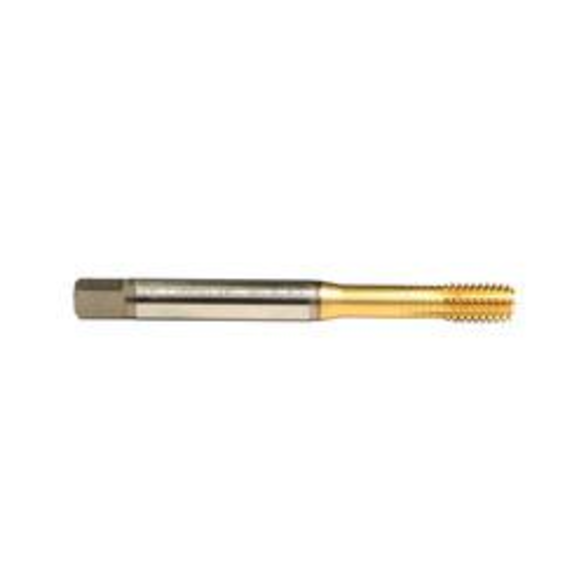

Emuge BW921400.5041 Druck 2-Z-SN-IKZ BW921400 Form C Reinforced Shank Thread Forming Tap, #10-32 Thread
EMUGE BW921400.5041
$90.66
/ EA
Out of Stock
- Thread Size: #10-32
- Overall Length: 2.756 in
- Thread Standard: UNF
- Finish/Coating: TiN Coated
- Material: HSS-E
- Chamfer Type: Modified Bottoming
- Class of Fit: 2BX
- Cutting Direction: Right Hand
- Series: Druck 2-Z-SN-IKZ BW921400
- Shank Diameter: 0.194 in
- Shank Length: 1.77 in
- Tap Drill Size: 0.1752 in
- Thread Length: 0.591 in
- The druck Z roll form tap is a universal design for the chipless production of internal threads, blind and through hole
- IKZ - axial coolant hole design
- Lubrication grooves
- Z designates a tap design for CNC controlled machines with synchronous feed control
- Specialized Emuge TiN-T1 coated options available for additional tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|ASME B1.1|DIN 2174|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For threading to the bottom of blind holes
Emuge Thread Forming Tap | Form C Reinforced Shank | Series: Druck 2-Z-SN-IKZ BW921400 | Measurement System: Imperial | #10-32 | UNF | Modified Bottoming Chamfer | 0.591 in Thread Length | 2.756 in Overall Length | Right Hand Cutting | Class of Fit: 2BX | 0.194 in Shank Dia | 1.77 in Shank Length | 0.1752 in Tap Drill | HSS-E | TiN Coated
