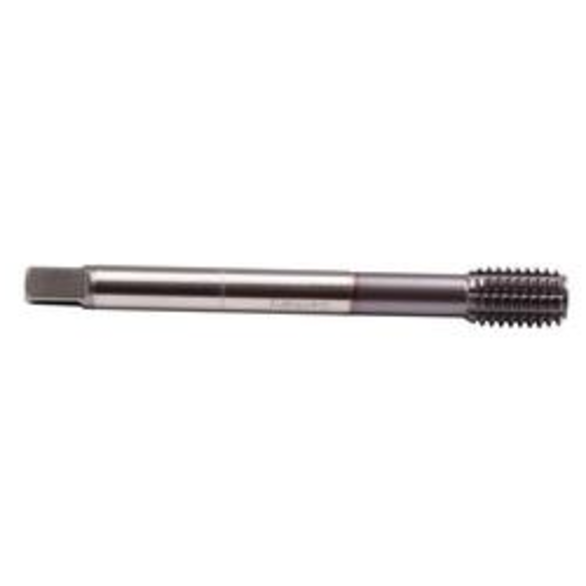

Emuge CU44Q200.5012 InnoForm 2-GAL/E-SN IKZ CU44Q200 Form E Thread Forming Tap, 7/16-14 Thread
- Thread Size: 7/16-14
- Overall Length: 3.937 in
- Thread Standard: UNC
- Finish/Coating: TiCN Coated
- Material: HSS-E
- Chamfer Type: Bottoming
- Class of Fit: 2BX
- Cutting Direction: Right Hand
- Series: InnoForm 2-GAL/E-SN IKZ CU44Q200
- Shank Diameter: 0.323 in
- Shank Length: 3.23 in
- Thread Length: 0.866 in
Cast aluminum materials exert a very strong abrasive stress on the forming lobes of a cold forming tap during work. In addition, the ductile properties of these rather brittle materials must be regarded as relatively poor. In order to achieve easier thread production and better wear resistance even under these bad conditions, InnoForm GAL/E has a specially adjusted geometry and an additional hard surface coating.
- IKZ axial coolant hole design
- Lubrication grooves
- TiCN coated for wear resistance and added tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For threading to the bottom of blind holes
Emuge Thread Forming Tap | Form E | Series: InnoForm 2-GAL/E-SN IKZ CU44Q200 | Measurement System: Imperial | 7/16-14 | UNC | Bottoming Chamfer | 0.866 in Thread Length | 3.937 in Overall Length | Right Hand Cutting | Class of Fit: 2BX | 0.323 in Shank Dia | 3.23 in Shank Length | HSS-E | TiCN Coated
