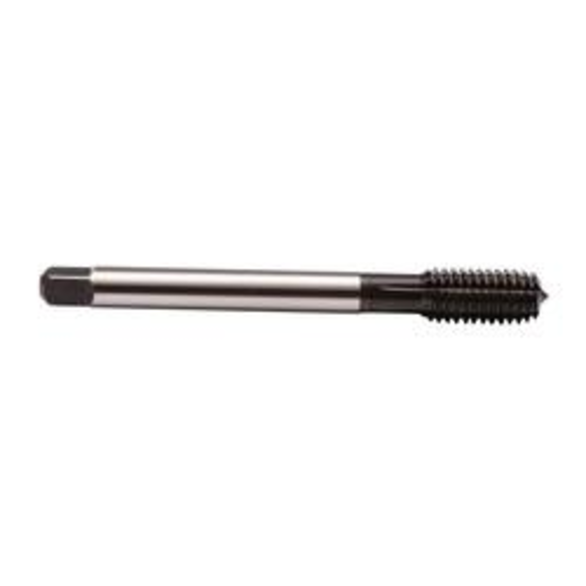

Emuge CU921000.5049 Druck 2-STEEL-SN CU921000 Form C Reduced Shank Thread Forming Tap, 5/8-18 Thread
EMUGE CU921000.5049
$179.44
/ EA
Out of Stock
- Thread Size: 5/8-18
- Overall Length: 3.937 in
- Thread Standard: UNF
- Finish/Coating: NT Coated
- Material: HSS-E
- Chamfer Type: Modified Bottoming
- Class of Fit: 2BX
- Cutting Direction: Right Hand
- Series: Druck 2-STEEL-SN CU921000
- Shank Diameter: 0.48 in
- Square Size: 0.36 in
- Tap Drill Size: 0.6004 in
- Thread Length: 0.866 in
- The druck STEEL roll form tap is a universal design for the chipless production of internal threads, blind and through hole
- Lubrication grooves improve surface finish
- NT nitrided surface hardening process for wear resistance
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|ASME B1.1|DIN 2174|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For threading to the bottom of blind holes
Emuge Thread Forming Tap | Form C Reduced Shank | Series: Druck 2-STEEL-SN CU921000 | Measurement System: Imperial | 5/8-18 | UNF | Modified Bottoming Chamfer | 0.866 in Thread Length | 3.937 in Overall Length | Right Hand Cutting | Class of Fit: 2BX | 0.48 in Shank Dia | 0.6004 in Tap Drill | 0.36 in Square Size | HSS-E | NT Coated
