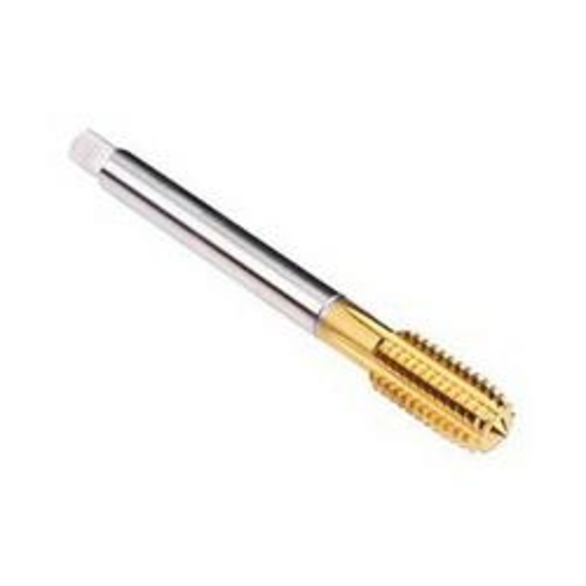

Emuge CU921400.5050 Druck 2-STEEL-SN CU921400 Form C Reduced Shank Thread Forming Tap, 3/4-16 Thread
EMUGE CU921400.5050
$258.56
/ EA
Out of Stock
- Thread Size: 3/4-16
- Overall Length: 4.331 in
- Thread Standard: UNF
- Finish/Coating: TiN Coated
- Material: HSS-E
- Chamfer Type: Modified Bottoming
- Class of Fit: 2BX
- Cutting Direction: Right Hand
- Series: Druck 2-STEEL-SN CU921400
- Shank Diameter: 0.59 in
- Shank Length: 3.35 in
- Square Size: 0.442 in
- Tap Drill Size: 0.7224 in
- Thread Length: 0.984 in
- The druck STEEL roll form tap is a universal design for the chipless production of internal threads, blind and through hole
- Thread form with lubrication grooves
- TiN coated for additional tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For threading to the bottom of blind holes
Emuge Thread Forming Tap | Form C Reduced Shank | Series: Druck 2-STEEL-SN CU921400 | Measurement System: Imperial | 3/4-16 | UNF | Modified Bottoming Chamfer | 0.984 in Thread Length | 4.331 in Overall Length | Right Hand Cutting | Class of Fit: 2BX | 0.59 in Shank Dia | 3.35 in Shank Length | 0.7224 in Tap Drill | 0.442 in Square Size | HSS-E | TiN Coated
