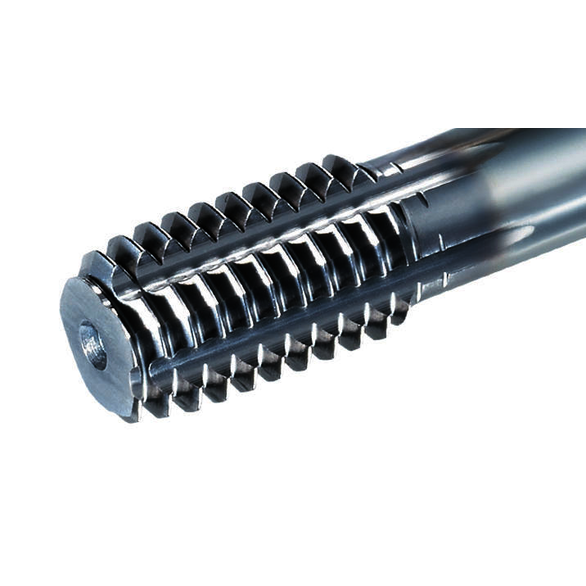

OSG 1635050847, Thread Limit D7, Chamfer 4.5P, Thread Forming Tap
OSG 1635050847
$62.91
/ EA
Out of Stock
- Thread Size: M5-0.8
- Overall Length: 70.00 mm
- Thread Standard: Metric
- Finish/Coating: V-Coated
- Material: HSS-CO
- Chamfer Type: 4.5P Plug
- Measurement System: Metric
- Overall Length - Metric: 70 mm
- Series: 16350
- Shank Diameter - Decimal: 4.92 mm
- Square Size: 6.4 mm L x 3.86 mm W
- Thread Length - Metric: 10 mm
- Thread Limit: D7
- Thread Length: 10 mm
The EXOPRO® XPF & S-XPF represent a new evolution in forming tap technology. These form taps generate up to 50% less torque versus other forming taps, making it feasible to tap materials up to 40 HRC and sizes up to or exceeding 1" in diameter.
- Fluteless Forming Tap
- 40-50% less machining torque
- Coolant-fed version also available (S-XPF)
- DIN Overall Length
Application:Aluminum Alloy, Cast Aluminum, Carbon Steels, Alloy Steel, Die Steel, Stainless Steel, Hardened Steel < 40 HRC.Higher performance with XPF is achieved when running at higher SFM.Forming is possible in Nickel Alloys such as Inconel 718 for thread sizes under 1/4".
OSG 1635050847 | Thread Limit D7 | Chamfer 4.5P | V Coated | HSS-CO | Thread Forming Tap
