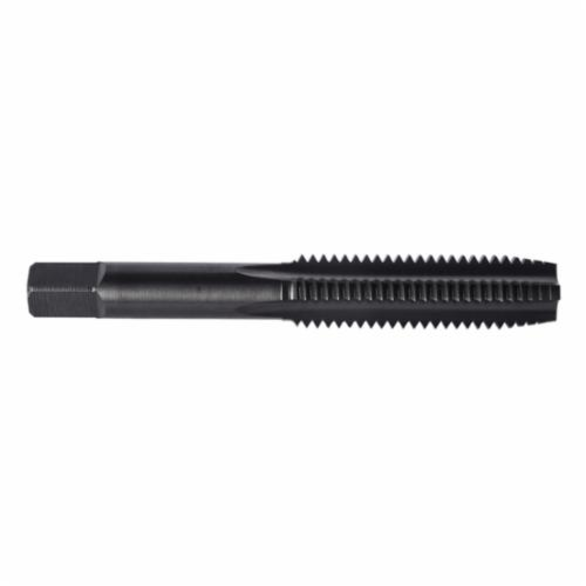

Union Butterfield® 1599 Straight Flute Hand Tap, Imperial, 9/16-18, Ground/UNF Thread, 4 Flutes, 3B, Bottoming, HSS

• Designed for through or blind hole tapping with a specific cutting geometry for gray cast irons and those materials producing broken chips
• Also ideal for non-metallics, cast brass and other brass materials producing broken powdery chips
• Nitride and steam oxide coating reduces wear and chip welding in abrasive materials
• Nitriding is a process that is used to increase the hardness and wear resistance of the surface of a tool
• It is particularly suitable for taps that are used on abrasive materials such as cast iron, bakelite
• Nitriding is used on twist drills when it is desirable to increase the strength and wear resistance of the cylindrical lands
• Steam tempering gives a strongly adhering blue oxide surface that acts to retain cutting fluid and prevent chip to tool welding, thereby counteracting the formation of a built-up edge
• Steam tempering can be applied to any bright tool but is most effective on drills and taps
• A medium alloyed high speed steel that has good machinability and good performance
• HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
• 0.322 in square size
• 1/2 in square length
• 1.5XD depth of cut
• H3 thread limit

Union Butterfield® Straight Flute Hand Tap| Series: 1599| Measurement System Imperial| 9/16-18| Ground/UNF| Bottoming Chamfer| 4 Flutes| HSS| Nitride/Steam Oxide| Class of Fit: 3B| Right Hand Cutting| 1-21/32 in Thread Length| 3-19/32 in Overall Length| 0.429 in Shank Dia
