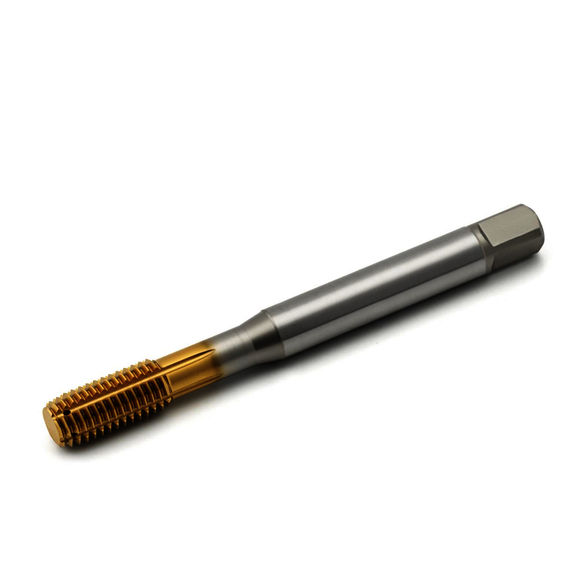

Seco 03000329 Threadmaster™ MF-V054-A Forming Tap With Coolant Through, M14x2 Thread
SECO 03000329
$235.38
/ EA
Out of Stock
- Thread Size: M14x2
- Overall Length: 110 mm
- Thread Standard: Metric Thread
- Finish/Coating: TiN Coated
- Material: Vanadium HSS
- Chamfer Type: Modified Bottoming
- Class of Fit: 6HX
- Cutting Direction: Right Hand
- Finish: TiN
- Overall Length - Metric: 110 mm
- Series: Threadmaster MF-V054-A
- Shank Diameter - Decimal: 0.43307 in
- Shank Diameter - Metric: 11 mm
- Shank Length: 29 mm
- Shank Length - Metric: 29 mm
- Size: M14x2
- Square Size: 11 mm x 9 mm
- Thread Length: 25 mm
- Thread Length - Metric: 25 mm
- Optimized threading operations
- Versatility of combined processes
- Reduced tooling inventory and cost
- Superior thread surfaces
- High efficiency chip evacuation
- Longer tool life
- For blind and through hole
Standard/Approvals: DIN 2174
For general purpose application
Seco Forming Tap | Series: Threadmaster MF-V054-A | Measurement System: Metric | M14x2 Thread | Modified Bottoming Chamfer | 25 mm Thread Length | 110 mm Overall Length | Right Hand Cutting | Class of Fit: 6HX | 11 mm Shank Dia | 29 mm Shank Length | 11 x 9 mm Square Size | Vanadium HSS | TiN Coated
