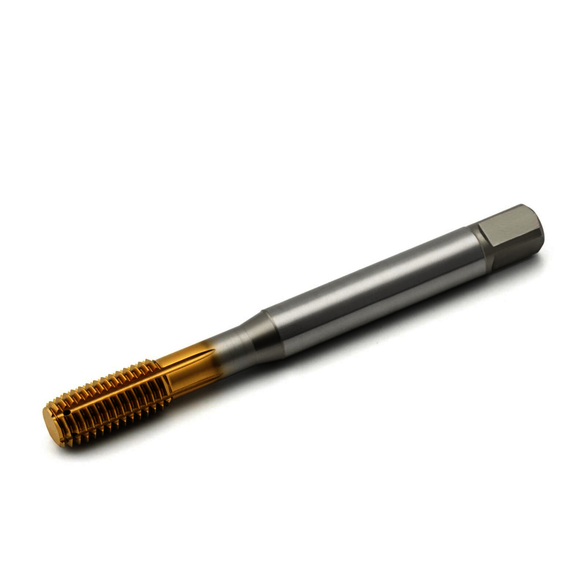

Seco 03000333 Threadmaster™ MF-V054-A Forming Tap With Coolant Through, M22x2.5 Thread
SECO 03000333
$520.63
/ EA
Out of Stock
- Overall Length: 140 mm
- Thread Standard: Metric Thread
- Finish/Coating: TiN Coated
- Material: Vanadium HSS
- Chamfer Type: Modified Bottoming
- Class of Fit: 6HX
- Cutting Direction: Right Hand
- Overall Length - Metric: 140 mm
- Series: Threadmaster MF-V054-A
- Shank Diameter - Decimal: 0.70866 in
- Shank Diameter - Metric: 18 mm
- Shank Length: 47 mm
- Shank Length - Metric: 47 mm
- Size: M22x2.5
- Square Size: 18 mm x 14.5 mm
- Thread Length: 34 mm
- Thread Length - Metric: 34 mm
- Finish: TiN
- Optimized threading operations
- Versatility of combined processes
- Reduced tooling inventory and cost
- Superior thread surfaces
- High efficiency chip evacuation
- Longer tool life
- For blind and through hole
Standard/Approvals: DIN 2174
For general purpose application
Seco Forming Tap | Series: Threadmaster MF-V054-A | Measurement System: Metric | M22x2.5 Thread | Modified Bottoming Chamfer | 34 mm Thread Length | 140 mm Overall Length | Right Hand Cutting | Class of Fit: 6HX | 18 mm Shank Dia | 47 mm Shank Length | 18 x 14.5 mm Square Size | Vanadium HSS | TiN Coated
