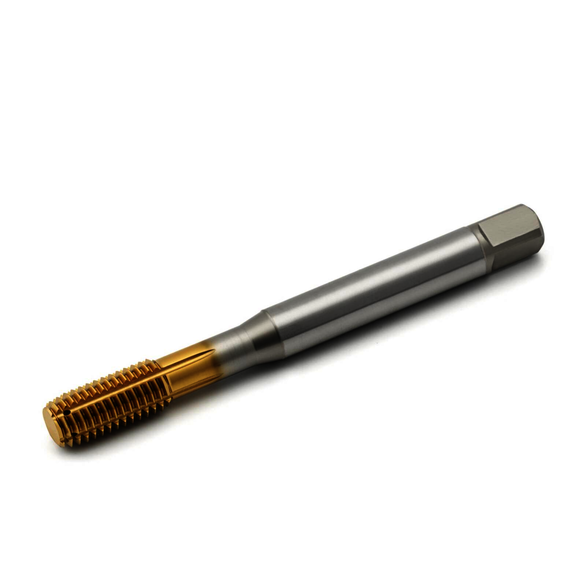

Seco 03000351 Threadmaster™ MF-V054-A Forming Tap With Coolant Through, M12x1.25 Thread
SECO 03000351
$217.00
/ EA
Out of Stock
- Overall Length: 100 mm
- Thread Standard: Fine
- Finish/Coating: TiN Coated
- Material: Vanadium HSS
- Chamfer Type: Modified Bottoming
- Class of Fit: 6HX
- Cutting Direction: Right Hand
- Overall Length - Metric: 100 mm
- Series: Threadmaster MF-V054-A
- Shank Diameter: 9 in
- Shank Diameter - Decimal: 0.35433 in
- Shank Diameter - Metric: 9 mm
- Shank Length: 27 mm
- Shank Length - Metric: 27 mm
- Size: M12x1.25
- Square Size: 9 mm x 7 mm
- Thread Length: 21 mm
- Thread Length - Metric: 21 mm
- Finish: TiN
- Optimized threading operations
- Versatility of combined processes
- Reduced tooling inventory and cost
- Superior thread surfaces
- High efficiency chip evacuation
- Longer tool life
- For blind and through hole
Standard/Approvals: DIN 2174
For general purpose application
Seco Forming Tap | Series: Threadmaster MF-V054-A | Measurement System: Metric | M12x1.25 Thread | Fine Thread | Modified Bottoming Chamfer | 21 mm Thread Length | 100 mm Overall Length | Right Hand Cutting | Class of Fit: 6HX | 9 mm Shank Dia | 27 mm Shank Length | 9 x 7 mm Square Size | Vanadium HSS | TiN Coated
