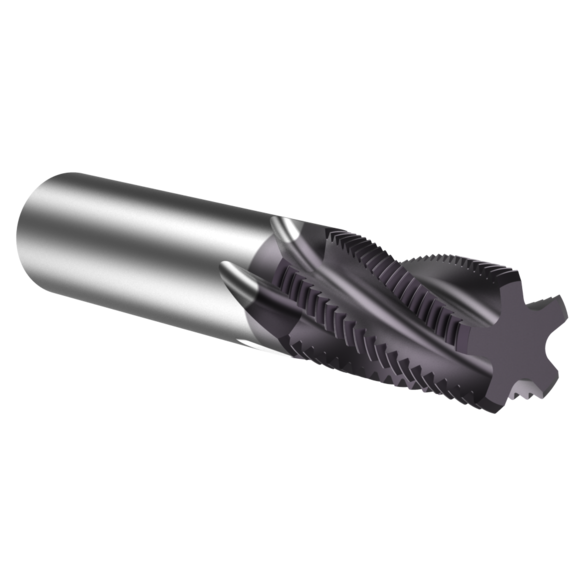

ALLIED TM, HD BSPP 14, 16 MM SHK Carbide Threadmill
ALLIED HDTM14BSPPM
$368.18
/ EA
Out of Stock
- Cutting Diameter - Metric: 15.75 mm
- Diameter - Fractional: 1/4 in
- Flute Type: Helical
- Overall Length: 2-1/2 in
- Shank Diameter - Decimal: 0.25 in
- Shank Diameter - Fractional: 1/4 in
- Shank Diameter - Metric: 16 mm
- Thread Standard: BSPP
- Pitch: 14
- Number of Flutes: 3, 5
- Finish/Coating: TiAlN, UN
- Material: Carbide
- Length of Cut: 0.375 in
- Thread Type: Internal/External
- Shank Diameter: 1/4 in
- Diameter: 1/4 in
- Length of Cut - Fractional: 3/8 in
- Minimum Thread Size: 3/4"
- Overall Length - Fractional: 2-1/2 in
- Shank Type: Cylindrical
- Weldon Flat: No
Threadmill Solid:
- The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard.
- These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
- Full product offering of UN,NPT,NPTF, and METRIC tools.
- TiAlN coated for increased tool life over uncoated tools.
- Coolant through options also available.
