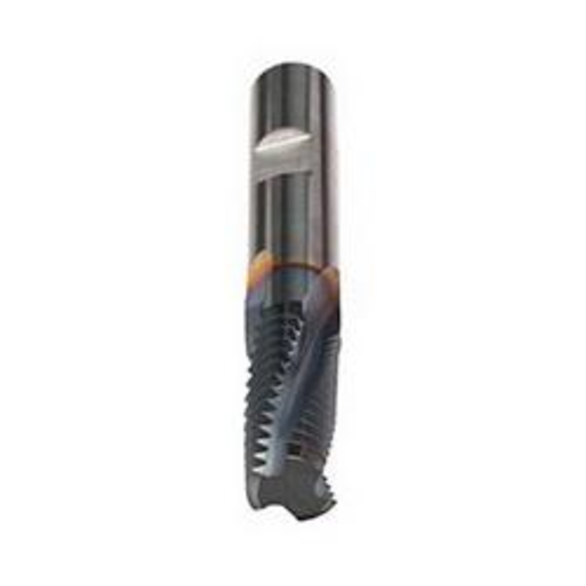

Emuge GFR15106.5046 SHUR-THREAD™ GFR15106 GFI Style Spiral Flute Thread Mill, 7/16-20 UNF Thread, 3 in OAL, 3 Flutes, 3/8 in Dia Shank
EMUGE GFR15106.5046
$346.60
/ EA
Out of Stock
- Overall Length: 3 in
- Shank Diameter - Fractional: 3/8 in
- Thread Size: 7/16-20
- Cutting Diameter: 0.371 in
- Number of Flutes: 3
- Finish/Coating: TiCN Coated
- Material: Carbide
- Length of Cut: 0.891 in
- Thread Type: UNF
- Shank Diameter: 3/8 in
- Series: SHUR-THREAD™ GFR15106
- Shank Length - Fractional: 1-9/16 in
- Shank Type: Weldon Flat
- GFI full profile thread mill designed for UNF threads in a wide range of soft and pre-hardened steel up to 58 Rc also stainless steel, aluminum, cast iron, titanium and inconel
- 15 deg right hand spiral flute geometry for blind and through hole applications in most materials
- Solid carbide and axial coolant fed carbide option to aid in chip evacuation
- For the production of internal and external threads
- Tool for different thread sizes with standard thread profile (but for one pitch only)
- Multi-layer TiCN coated for wear resistance and additional tool life
Standards/Approvals: PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For blind and through hole applications
Emuge Spiral Flute Thread Mill | GFI Style | Series: SHUR-THREAD GFR15106 | 7/16-20 | UNF | 0.371 in Cutting Dia | 0.891 in Length of Cut | 3 in Overall Length | 3 Flutes | Weld-On Flat Shank | 3/8 in Shank Dia | 1-9/16 in Shank Length | Carbide | TiCN Coated
