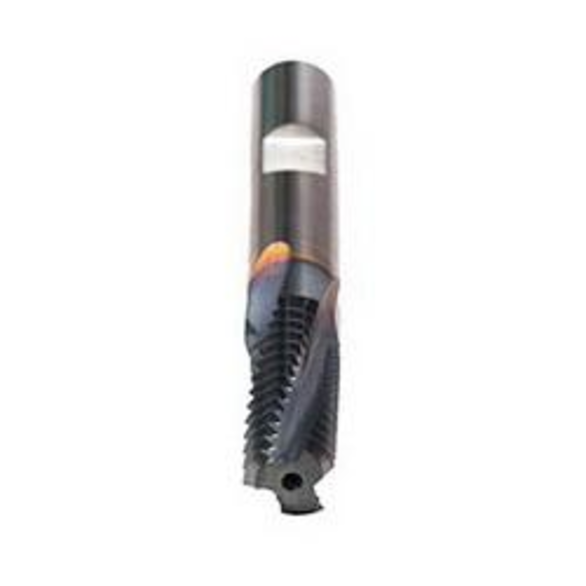

Emuge GFR35106.5015 SHUR-THREAD™ GFR35106 GFI Style Spiral Flute Thread Mill With Axial Through Coolant, 5/8-11 UNC Thread, 3-3/4 in OAL, 4 Flutes, 1/2 in Dia Shank
EMUGE GFR35106.5015
$502.59
/ EA
Out of Stock
- Shank Diameter - Fractional: 1/2 in
- Thread Size: 5/8-11
- Cutting Diameter: 0.496 in
- Number of Flutes: 4
- Finish/Coating: TiCN Coated
- Material: Carbide
- Length of Cut: 1.316 in
- Thread Type: UNC
- Shank Diameter: 1/2 in
- Overall Length - Fractional: 3-3/4 in
- Series: SHUR-THREAD™ GFR35106
- Shank Length - Fractional: 1-25/32 in
- Shank Type: Weldon Flat
- GFI full profile thread mill designed for UNC threads in a wide range of soft and pre-hardened steel up to 58 Rc also stainless steel, aluminum, cast iron, titanium and inconel
- 15 deg right hand spiral flute geometry for blind and through hole applications in most materials
- Solid carbide and axial coolant fed carbide option to aid in chip evacuation
- For the production of internal and external threads
- Tool for different thread sizes with standard thread profile (but for one pitch only)
- Multi-layer TiCN coated for wear resistance and additional tool life
Standards/Approvals: PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For blind and through hole applications
Emuge Spiral Flute Thread Mill | GFI Style | Series: SHUR-THREAD GFR35106 | 5/8-11 | UNC | 0.496 in Cutting Dia | 1.316 in Length of Cut | 3-3/4 in Overall Length | 4 Flutes | Weld-On Flat Shank | 1/2 in Shank Dia | 1-25/32 in Shank Length | Carbide | TiCN Coated
