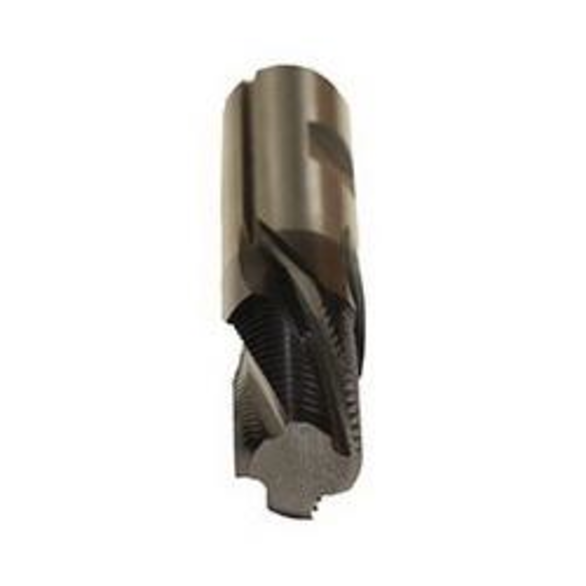

Emuge GFT8B219.9677 GFI Style Spiral Flute Thread Mill, 1/4-18, 3/8-18 NPT (API-LP) Thread, 3-1/4 in OAL, 4 Flutes, 1/2 in Dia Shank
EMUGE GFT8B219.9677
$451.17
/ EA
Out of Stock
- Shank Diameter - Fractional: 1/2 in
- Thread Size: 1/4-18, 3/8-18
- Cutting Diameter: 0.4 in
- Number of Flutes: 4
- Finish/Coating: TiAlN Coated
- Material: Carbide
- Length of Cut: 0.804 in
- Thread Type: NPT (API-LP)
- Shank Diameter: 1/2 in
- Overall Length - Fractional: 3-1/4 in
- Series: GFT8B219
- Shank Type: Weldon Flat
- GFI-API tapered NPT pipe thread high performance design for maximum efficiency
- NPT (API-LP) American tapered pipe thread, ANSI/ASME B1.20.1
- For 1:16 taper internal threads
- 15 deg left hand spiral flute geometry/reduces vibration
- Specialized TiAlN-T46 multi-layer PVD coated for heat and wear resistance
- Increased core diameter
- Extended 14 cutting teeth profile to produce API-LP threads
- Multiple thread sizes possible with 1 tool
- External shank coolant channels guide coolant directly to the cutting zone
Standards/Approvals: ANSI/ASME B1.20.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
Emuge Spiral Flute Thread Mill | GFI Style | Series: GFT8B219 | 1/4-18 | 3/8-18 | NPT (API-LP) | 0.4 in Cutting Dia | 0.804 in Length of Cut | 3-1/4 in Overall Length | 4 Flutes | Weld-On Flat Shank | 1/2 in Shank Dia | Carbide | TiAlN Coated
