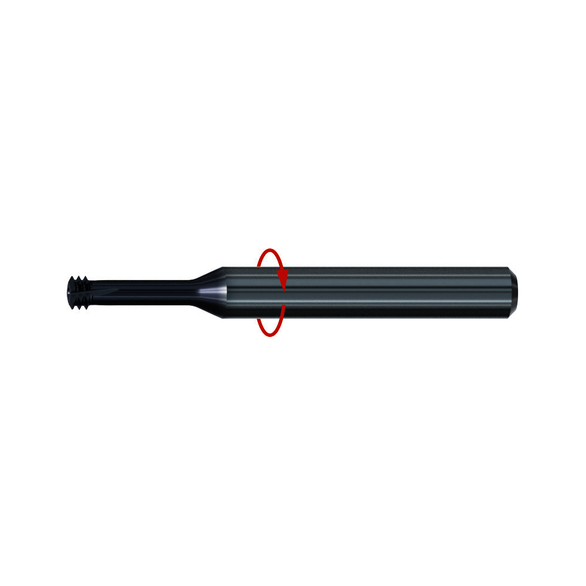

Self-Lock Thread Mill #12-28 UNF 2XD - THREADS-ALL/AERO
EMUGE GF26A729.5712
$470.89
/ EA
Out of Stock
- Overall Length: 55 mm
- Thread Size: LK #12-28
- Thread Standard: LK-UNF
- Number of Flutes: 5
- Shank Diameter: 6 mm
- Cutting Diameter: 4.45 mm
- Cutting Diameter - Decimal: 0.1751 in
- Cutting Diameter - Metric: 4.45 mm
- Overall Length - Metric: 55 mm
- Shank Diameter - Metric: 6 mm
Engineered for precision and durability, this solid carbide circular thread mill features a left-hand flute design for enhanced stability during operation. Its three-tooth configuration enables both roughing and finishing in a single pass, streamlining your machining process. Capable of producing full bottoming threads to within one pitch, this Self-Lock tool is ideal for demanding applications in aerospace and exotic materials. For optimal verification, use EMUGE-FRANKEN HRPG Gage (Series: Self-Lock-L1140100)-designed to inspect the ramp angle on Self-Lock thread forms and ensure critical thread integrity.
- Solid carbide circular thread mill with left hand flute design for additional stability.
- Three tooth design with roughing and finishing in a single profile.
- Full bottoming threads to within 1 pitch
- For aerospace and exotic materials
