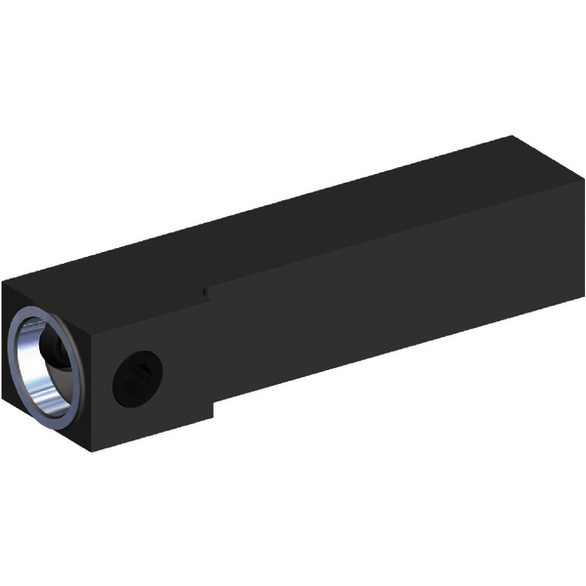

Kennametal 2386033 Left Hand, 3.8189 in Shank Length, 3.8190 in OAL, Lathe Modular Clamping Units
KENNAM 2386033
$389.43
/ EA
Out of Stock
- Overall Length: 3.819 in
- Shank Length: 3.8189 in
- Gage Length: 3.819 in
- Overall Width: 1.22 in
- System Size Workpiece Side: KM25
- To ensure 100% system stability, KSEM™ inserts used for KSEM PLUS should not be reground.
- KSEM PLUS heads are shipped with all insert screws.
- KSEM PLUS heads are shipped with two wrenches, one for the KSEM insert and one to be used for the DFT™/DFR™ inserts as well as for the assembly of the body to the head.
- Order KSEM PLUS shanks using connection coupling size (CSMS) to determine which heads go with each shank.
- PDD in the callout drawing refers to the D1 of the KSEM HPG and HPCCL inserts for use with KSEM PLUS.
- Order inserts (KSEM, DFT, and DFR) for KSEM PLUS separately.
- Modular drilling head for KSEM™ PLUS drilling system, combining high cutting speeds with high feed rates. It features two full cutting edges and doubles your metal removal rate compared to an indexable drill. Combine with the required tool holders and carbide inserts.
- A1 head productivity: high metal removal rates.
- A1 head process security: very stable drilling in normal cutting conditions with high quality hole surfaces, short chips, and low noise levels.
- A1 head cost efficiency: cost-effective solution using DFR™ and DFT™ cutting inserts.
- Quickly and easily replace all cutting inserts or drill heads without the need to remove the complete tool from the machine.
