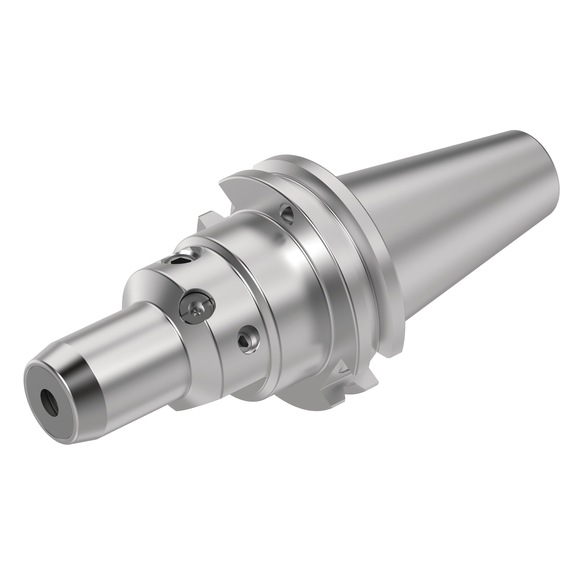

Erickson 6480510 High Performance Standard Hydraulic Chuck, 1-3/4 in Dia Taper Shank, 5/8-11 UNC Connection, 3/8 in Dia Hole, 1.167 in Dia Nose, 6 in Projection
KENNAM 6480510
$594.38
/ EA
Out of Stock
- Clamping Length: 1.22 in
- Coolant Hole Diameter - Decimal: 0.5365 in
- Coolant Hole Diameter - Metric: 13.63 mm
- Gage Length: 6 in
- Overall Length: 8.687 in
- Shank Length: 2.812 in
- System Size Machine Side: CV40
- Usable Length: 3.937 in
- Balanceable — fine tune with optional M6 set screws.
- Suitable for carbide and HSS cutting tools.
