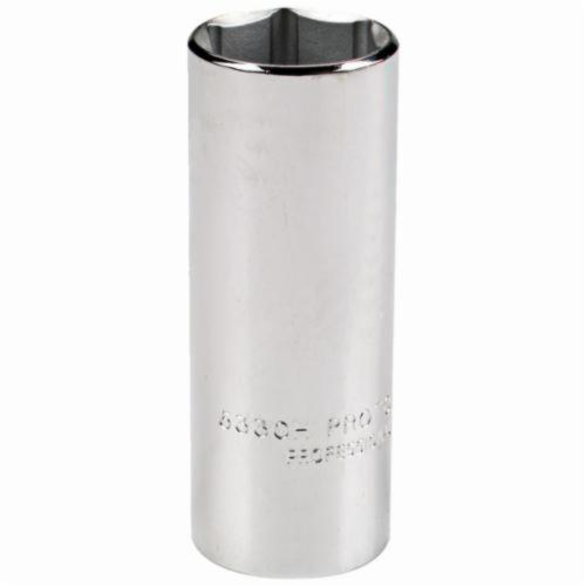

Proto® J5314H Deep Length Drive Socket, Imperial, 7/16 in 6 Point Socket, 1/2 in Square Drive
PROTO J5314H
$20.58
/ EA
Out of Stock
- Bolt Clearance Depth: 2-39/64 in
- Drive End Width: 7/8 in
- Drive Size: 1/2 in
- Drive Type: Square
- Finish: Full Polished
- Locking Type: Ball
- Material: Alloy Steel
- Opening Depth: 23/64 in
- Overall Length: 3-1/4 in
- Socket End Width: 9/16 in
- Socket Size: 7/16 in
- Socket Type: 6 Point
- Type: Deep Length
- Proto® 6-point sockets are ideal for use on stubborn or damaged fasteners and also on fasteners made from soft materials
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded, or rusted fasteners
Warranty: Lifetime
Standard/Approvals: ASME B107.1
Proto® Drive Socket | Deep Length | Measurement System Imperial | 1/2 in Drive | Square Drive | 6 Point Socket | 7/16 in Socket | 3-1/4 in Overall Length | 7/8 in Drive End Width | 9/16 in Socket End Width | 2-39/64 in Bolt Clearance Depth | 23/64 in Opening Depth | Ball Locking | Alloy Steel | Full Polished | STA-BLKHAW
