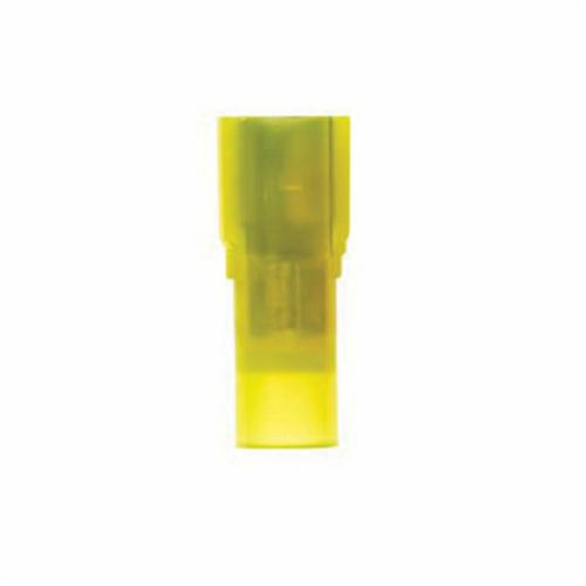

Scotchlok 054007-69573 Disconnect Tab, 12 - 10 AWG, 1/4 in, 0.128 in ID x 0.25 in L Interlocking Barrel, ETP Copper
3M 7100164301
$0.79
/ Order multiples of 500 EA
Out of Stock
- Barrel Type: 0.128 in ID x 0.25 in L Interlocking
- Color: Yellow
- Conductor Size: 12 - 10 AWG
- Conductor Type: Fully insulated
- Dimensions: 0.032 in T
- Material: ETP Copper
- Specifications: 0.99 in OAL
- Tab Size: 1/4 in
- Temperature Rating: -40 to 221 deg F
- Voltage Rating: 600 V
Scotchlok Disconnect Tab, Fully insulated Conductor, 12 - 10 AWG Conductor, 1/4 in Tab, 0.128 in ID x 0.25 in L Interlocking Barrel, 600 V, 0.99 in OAL, -40 to 221 deg F, ETP Copper, Yellow, 0.032 in T
- Attached to mating part by tongue of female part slipping over male tab
- Use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect
- 1/4 in OD nylon insulated, Female connection
