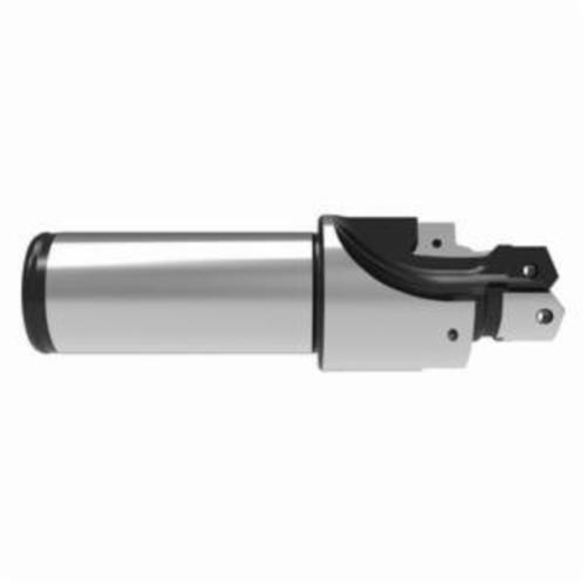

ALLIED #1 CV1 JDS METRIC ACCUPORT Replaceable Port Form Body
ALLIED G1731-CV1-25FM
$841.82
/ EA
Out of Stock
- Tube Dash Number: Cartridge Cavity
- Pilot Diameter: 0.728 in
- Pilot Diameter - Decimal: 0.728 in
- Pilot Diameter - Metric: 18.5 mm
- Spot Face Diameter - Decimal: 1.299 in
- Spot Face Diameter - Metric: 32.99 mm
- Shank Diameter - Decimal: 0.984 in
- Shank Diameter - Metric: 25 mm
- Overall Length: 4.23 in
- Pilot Length: 0.709 in
- Port Standard Designation: JDS-G173.1
- Port Thread Size: M20 X 1.5
- Porting Angle: 15 deg
- Seal Angle: 15 deg
- Seal Angle Diameter - Decimal: 0.862 in
- Seal Angle Diameter - Metric: 21.9 mm
- Seal Angle Length: 0.104 in
- Series: 1
- Shank Diameter: 0.984 in
- Shank Length: 2.09 in
- Shank Type: Cylindrical
- Tool Reference Length: 2 in
Avoid downtime in your metal boring and drilling operations with the ACCUPORT replaceable port form body. Available in four different specifications -- SAE J1926, ISO 16149:1, SAE AS5202, JDS G173.1 -- this part allows you to drill and finish forms in one operation. This piece is designed to adhere to strict manufacturing tolerances and is constructed from high-grade steel. You can order your ALLIED #1 CV1 JDS METRIC ACCUPORT Replaceable Port Form Body from BlackHawk Industrial.
