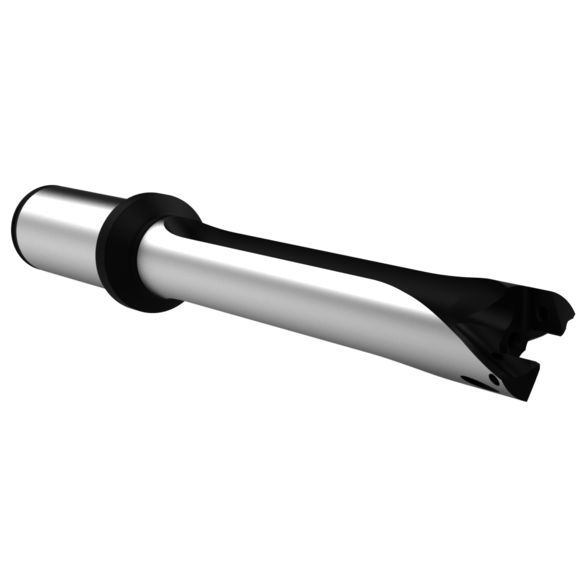

ALLIED 22MM 5X HXT HLD 1" CYL Replaceable Drill Body
ALLIED HXT0522S-100C
$513.79
/ EA
Out of Stock
- Shank Type: Cylindrical
- Flute Type: Straight
- Series: 22
- Shank Diameter: 1 in
- Application: High Performance
- Drill Depth - Fractional: 4-23/32 in
- Length Type: 5xD
- Maximum Diameter: 0.9448 in
- Minimum Diameter: 0.8661 in
- Overall Length - Fractional: 8 - 7/16 in
- Shank Length - Fractional: 2-9/32 in
- Tool Reference Length - Fractional: 6 - 5/32 in
GEN3SYS® XT Pro Holder:
- The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.
- The XT Pro holder feaures an increased flute area for chip evacuation.
- The holder also has additonal coolant to the cutting zone to increase insert life and drill stability.
- Available in 3xD, 5xD, 7xD and 10xD holder lengths.
- Available with straight flute.
