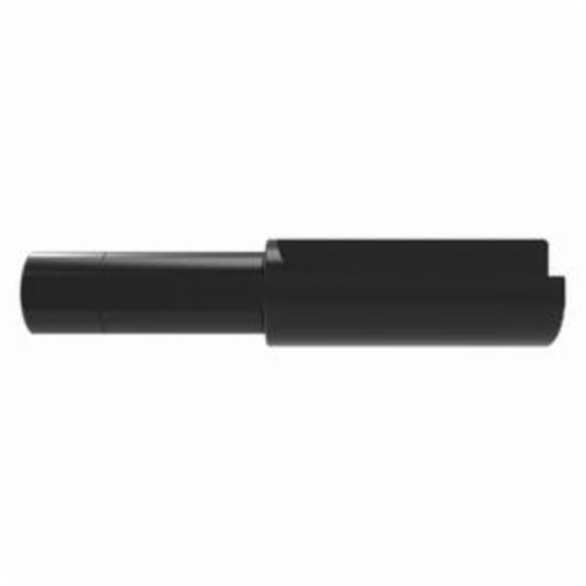

ALLIED STRAIGHT SHANK HOLDER Indexable Drill Body
ALLIED OP1-1S-SS1.5
$1,512.00
/ EA
Out of Stock
- Shank Type: Straight
- Flute Type: Straight
- Series: OP1
- Shank Diameter: 1 1/2 in
- Coolant Hole Thread: 1/4 in NPT Rear
- Coolant Through: Yes
- Drill Body Length: 4 in
- Drill Depth - Fractional: 3-9/32 in
- Drilling Capacity: 2 to 2-1/2 in
- Flat: Yes
- Gauge Length - Fractional: 4-3/64 in
- Includes: (4 Pack) MS-13M-1 Mounting Screw and (4 Pack) AS-10T9-1 Adjustment Screw
- Length Type: Short
- Maximum Diameter: 2.5 in
- Minimum Diameter: 2 in
- Overall Length - Fractional: 8-3/64 in
- Pipe Tap Rear: 1/4 (NPT)
- Shank Diameter - Decimal: 1.5 in
- Shank Diameter - Fractional: 1 1/2 in
- Shank Length: 4 in
- Type: Short Length;Straight Flute
Opening Drill® Holder:
- The Opening Drill® is an extremely effective tool designed to enlarge existing holes.
- It is available in six different shank styles: straight; ABS 63; Cat V40/V50; HSK 63A/C /100A/C; BT 40/BT50 and DV50.
- Cartridges can be easily replaced to protect the drill body investment.
- Replaceable cartridges mean less downtime in the event of a tool crash.
- Cartridges use the same insert in all pockets lowering inventory levels.
