Allied Machine & Engineering

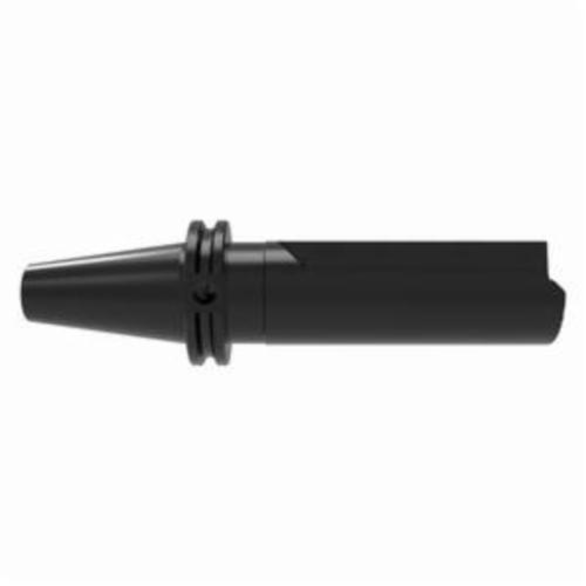

ALLIED 1.88-2.0 Rev. 2.2D CV40 Indexable Drill Body

ALLIED R34X22-CV40
$1,260.29 / EA
Out of Stock
ALLIED 1.88-2.0 Rev. 2.2D CV40 Indexable Drill Body
  • Shank Type: CV 40
  • Flute Type: Straight
  • Series: R34
  • Coolant Through: Yes
  • Drill Body Length: 6-3/4 in
  • Drill Depth - Fractional: 4-17/32 in
  • Drilling Capacity: 1-7/8 to 2 in
  • Gauge Length - Fractional: 6-25/32 in
  • Length Type: 2.2 X D
  • Maximum Diameter: 2 in
  • Minimum Diameter: 1.875 in
  • Type: Straight Flute

Revolution Drill® Holder:

  • The Revolution Drill® has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.
  • Adjustable up to 0.200" (5mm) on diameter.
  • Replaceable cartridges provide re-buildable function.
  • Drill depths from 2XD to 4.5XD.Diameter range from 1.875"-4.0" (47.63mm-101.60mm)
  • Available for Stack Plate application.
