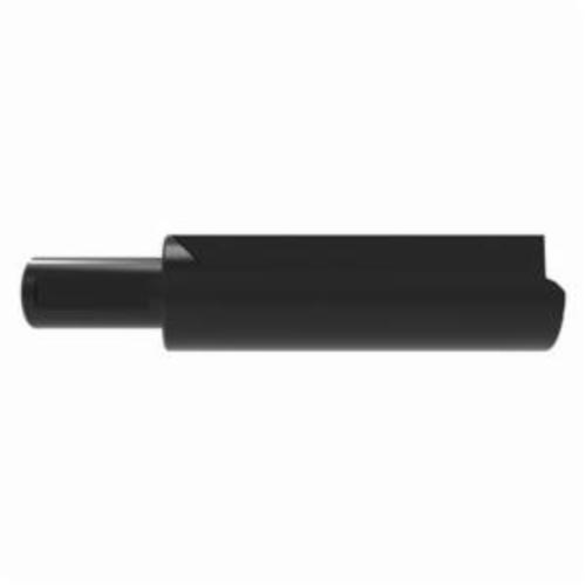

ALLIED 2.4-2.6 Revolution 3.5D 40mmSS Indexable Drill Body
ALLIED R42X35-40M
$1,363.97
/ EA
Out of Stock
- Shank Type: Straight
- Flute Type: Straight
- Series: R42
- Coolant Hole Thread: 1/4 in BSP
- Coolant Through: Yes
- Drill Body Length: 260.6 mm
- Drilling Capacity: 60.1 to 66 mm
- Flat: Yes
- Length Type: 3.5 X D
- Maximum Diameter - Metric: 66 mm
- Minimum Diameter - Metric: 61 mm
- Shank Diameter - Decimal: 1.5748 in
- Type: Metric;Straight Flute
- Shank Diameter - Metric: 40 mm
Revolution Drill® Holder:
- The Revolution Drill® has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.
- Adjustable up to 0.200" (5mm) on diameter.
- Replaceable cartridges provide re-buildable function.
- Drill depths from 2XD to 4.5XD.Diameter range from 1.875"-4.0" (47.63mm-101.60mm)
- Available for Stack Plate application.
