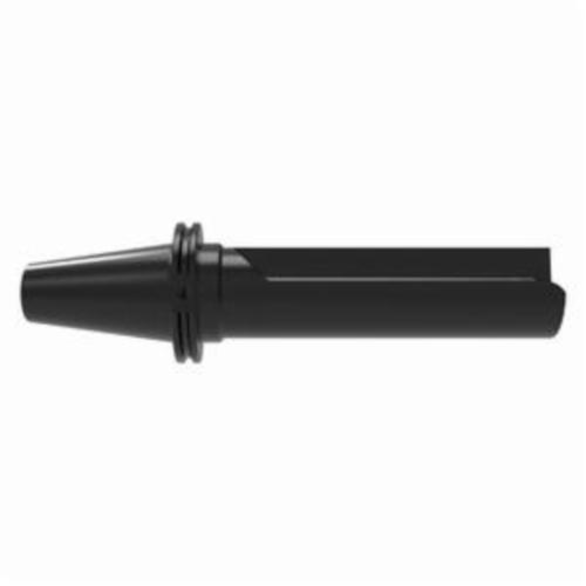

ALLIED 2.8-3.0 Revolution 3.5D CV50 Indexable Drill Body
ALLIED R46X35-CV50
$1,888.13
/ EA
Out of Stock
- Shank Type: CV 50
- Flute Type: Straight
- Series: R46
- Coolant Through: Yes
- Drill Body Length: 13-1/8 in
- Drill Depth - Fractional: 10-29/64 in
- Drilling Capacity: 2.8 to 3 in
- Gauge Length - Fractional: 13-1/8 in
- Length Type: 3.5 X D
- Maximum Diameter: 3 in
- Minimum Diameter: 2.8 in
- Type: Straight Flute
Revolution Drill® Holder:
- The Revolution Drill® has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.
- Adjustable up to 0.200" (5mm) on diameter.
- Replaceable cartridges provide re-buildable function.
- Drill depths from 2XD to 4.5XD.Diameter range from 1.875"-4.0" (47.63mm-101.60mm)
- Available for Stack Plate application.
