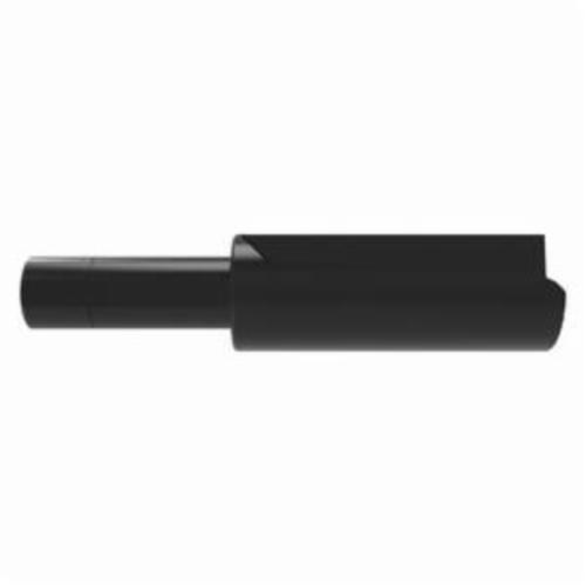

ALLIED 2.4-2.6 Rev. 2.2D 1.50SS SP Indexable Drill Body
ALLIED SP42X22-150L
$1,291.39
/ EA
Out of Stock
- Shank Type: Straight
- Flute Type: Straight
- Series: R42
- Shank Diameter: 1 1/2 in
- Coolant Hole Thread: 1/4 in NPT
- Coolant Through: Yes
- Drill Body Length: 6-13/16 in
- Drill Depth - Fractional: 5-3/4 in
- Drilling Capacity: 2.4 to 2.6 in
- Flat: Yes
- Gauge Length - Fractional: 6-13/16 in
- Length Type: 2.2 X D
- Maximum Diameter: 2.6 in
- Minimum Diameter: 2.4 in
- Overall Length - Fractional: 10-13/16 in
- Pipe Tap Rear: 1/4 (NPT)
- Shank Diameter - Decimal: 1.5 in
- Shank Diameter - Fractional: 1 1/2 in
- Shank Length: 4 in
- Type: Straight Flute
Revolution Drill® Holder:
- The Revolution Drill® has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.
- Adjustable up to 0.200" (5mm) on diameter.
- Replaceable cartridges provide re-buildable function.
- Drill depths from 2XD to 4.5XD.Diameter range from 1.875"-4.0" (47.63mm-101.60mm)
- Available for Stack Plate application.
