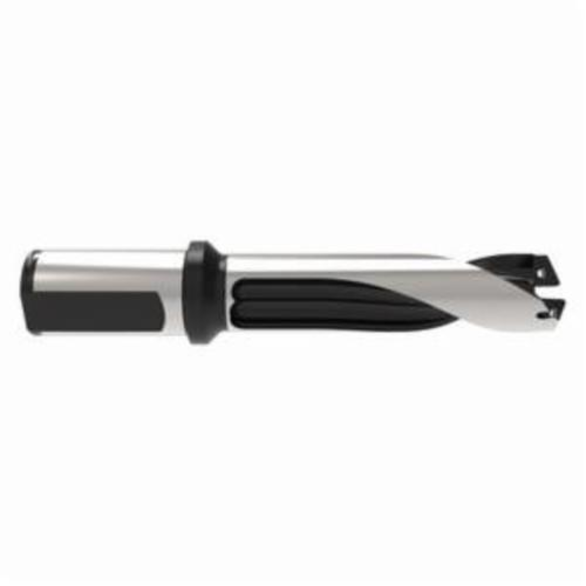

ALLIED 29MM 3X GEN3SYS HLD 32 FLG Replaceable Drill Body
ALLIED ST03290-32FM
$520.70
/ EA
Out of Stock
- Shank Type: Flanged
- Flute Type: Straight
- Series: 29
- Coolant Hole Thread: 1/4 in BSP Rear
- Drill Body Length: 136.2 mm
- Drilling Capacity: 29 to 31.99 mm
- Flat: Yes
- Length Type: 3xD
- Maximum Diameter - Metric: 32 mm
- Minimum Diameter - Metric: 29 mm
- Shank Diameter - Decimal: 1.25984 in
- Shank Diameter - Metric: 32 mm
- Tool Holder Style: ST03290
- Type: Metric;Replaceable;Standard Length;Straight Flute
GEN3SYS® XT Structural Steel Holder:
- A combination of a unique holder and insert designed specifically for the machines, material and environment commonly found in the Structural Steel Industry.
- Enhancements to both the insert and holder provide the superior chip formation, life, and toughness.
- Specifically designed for the Structural Steel Industry.
- Superior chip formation for excellent chip evacuation.
- Available in 3, 5, and 7xD lengths.
