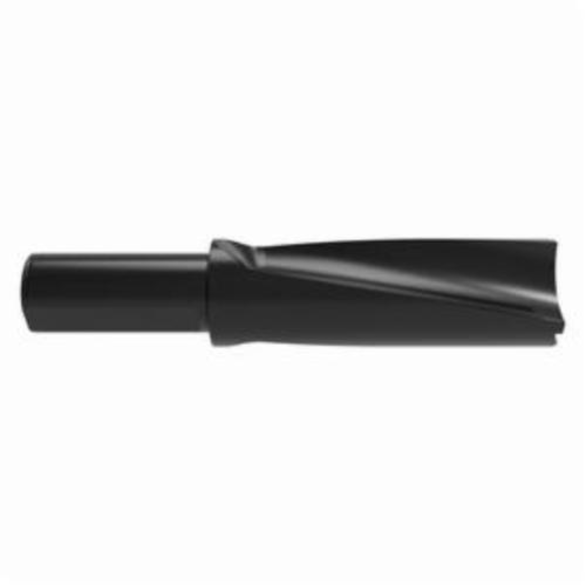

ALLIED 70 APX 3X HLDR FLANGED SHK Replaceable Drill Body
ALLIED W7003H-200F
$1,672.70
/ EA
Out of Stock
- Shank Type: Flanged
- Flute Type: Helical
- Series: 70
- Shank Diameter: 2 in
- Assembled Overall Length - Fractional: 15-3/32 in
- Assembled Reference Length - Fractional: 10-19/32 in
- Coolant Hole Thread: 1/4 in NPT Rear
- Drill Body Length: 10-19/32 in
- Drill Depth - Fractional: 8-3/4 in
- Drilling Capacity: 2.755 to 2.991 in
- Length Type: 3xØ
- Maximum Diameter: 2.9917 in
- Maximum Diameter - Metric: 75.99 mm
- Minimum Diameter: 2.7556 in
- Minimum Diameter - Metric: 70 mm
- Shank Diameter - Decimal: 2 in
- Shank Length - Fractional: 4-1/2 in
- Tool Holder Style: W7003H
- Type: Helical Flute;Replaceable
APX Holder:
- Allied's APX drilling system is a modular tool designed for depths beyond the range of a traditional IC drill.
- The tool uses a fixed series body, with various heads that determine the cutting diameter.
- Bodies are available from stock with a 2.000" flang.
- Allows for higher Spindle speeds and takes advantage of the power curve on modern CNC machines for maximum penetration rates on deep holes.
- A unique "X" locator on the Head to body connection allows for simple assembly and superior strength.
