Allied Machine & Engineering

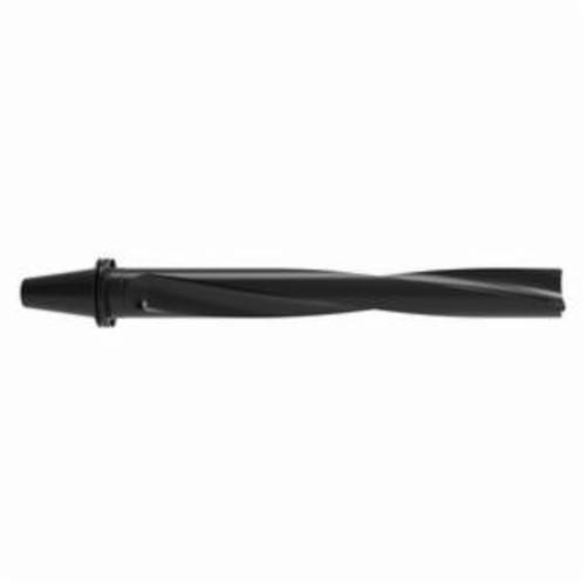

ALLIED 70 APX 8X HLDR CV50 SHK Replaceable Drill Body

ALLIED W7008H-CV50
$2,598.91 / EA
Out of Stock
  • Shank Type: CV 50
  • Flute Type: Helical
  • Series: 70
  • Assembled Overall Length - Fractional: 31-5/32 in
  • Assembled Reference Length - Fractional: 27-5/32 in
  • Drill Body Length: 27-5/32 in
  • Drill Depth - Fractional: 23-7/8 in
  • Drilling Capacity: 2.755 to 2.991 in
  • Length Type: 8xØ
  • Maximum Diameter: 2.9917 in
  • Maximum Diameter - Metric: 75.99 mm
  • Minimum Diameter: 2.7556 in
  • Minimum Diameter - Metric: 70 mm
  • Tool Holder Style: W7008H
  • Type: Deep Hole;Helical Flute;Replaceable

APX Holder:

  • Allied's APX drilling system is a modular tool designed for depths beyond the range of a traditional IC drill.
  • The tool uses a fixed series body, with various heads that determine the cutting diameter.
  • Bodies are available from stock with a 2.000" flang.
  • Allows for higher Spindle speeds and takes advantage of the power curve on modern CNC machines for maximum penetration rates on deep holes.
  • A unique "X" locator on the Head to body connection allows for simple assembly and superior strength.
