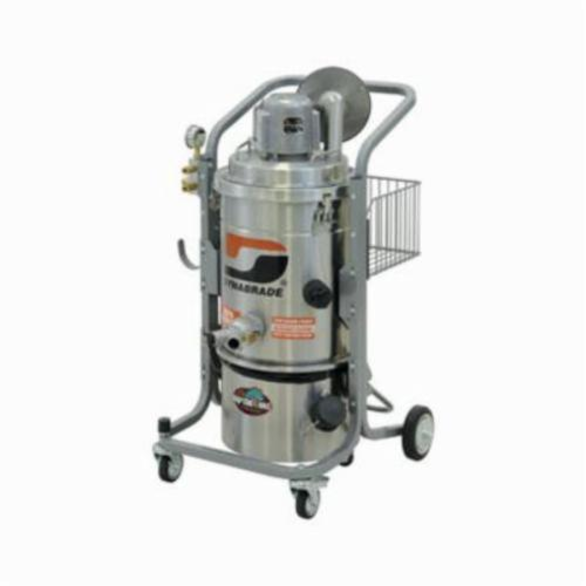

Dynabrade® Raptor Vac Electric Portable Vacuum System, 6.25 gal, 1000 W, 20 A, 120 VAC

DYN 61450
$17,824.05 / EA
Out of Stock
  • Air Flow Rate: 132 cfm
  • Amperage Rating: 20 A
  • Dimensions: 30 in L x 29 in W x 54 in H
  • Power Rating: 1000 W
  • Series: Raptor Vac
  • Sound Level: 75 dB
  • Tank Capacity: 6.25 gal
  • Type: Electric Portable
  • Voltage Rating: 120 VAC
  • Electric portable vacuum for use on metallic surfaces such as aluminum, magnesium, titanium, commercial alloys
  • Collects maximum of 5 lb of dust
  • Designed for dry-only source capture, where fine dust must be recovered
  • Legally certified as explosion-proof and dust ignition-proof
  • Includes HEPA H14 filter with 99.995% efficiency on 0.3 micron
  • Filter is located downstream of the motor
  • Manual filter shaker (MFS) system
  • Top-quality stainless steel body and 6.25 gal recovery tank
  • Maximum 5 pounds of metal dust recovery
  • Easy one-click detaching and connecting of recovery tank
  • Unit is static-dissipating and conductive
  • Aerosol leak tested for quality assurance
  • Equipped with easy-glide cart and tool basket
  • Guaranteed for safe recovery of combustible/conductive dusts

Includes: 96608 conductive cleaning kit, connect two tools simultaneously

Standard/Approvals: Designed for use in Class I, Division I, Group D T3C, Class II, Division I, Groups E, F and G, Hazardous Locations as defined in the National Electric Code (NFPA 70, European Certifications: ATEX, Third Party Certified, CE EX II 2 GD, EX d IIA T3 Gb, Ex t IIIC T 200 deg C Db IP 6X

Dynabrade® Vacuum System | Electric Portable | Series: Raptor Vac | 6.25 gal Tank | 1000 W | 120 VAC | 20 A | 90 psi Static Pressure | 132 cfm | 75 dB | 30 in L x 29 in W x 54 in H
