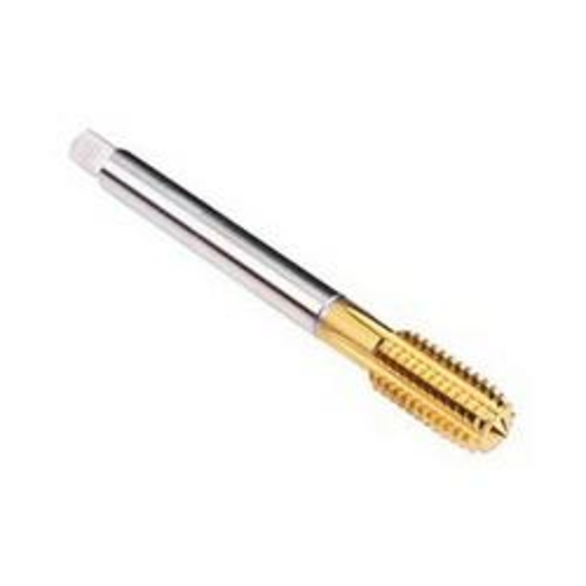

Emuge AU921400.5013 Druck STEEL-SN AU921400 Form C Reduced Shank Thread Forming Tap, 1/2-13 Thread
EMUGE AU921400.5013
$126.35
/ EA
Out of Stock
- Thread Size: 1/2-13
- Overall Length: 3.38 in
- Thread Standard: UNC
- Finish/Coating: TiN Coated
- Material: HSS-E
- Chamfer Type: Modified Bottoming
- Class of Fit: 2BX
- Cutting Direction: Right Hand
- Series: Druck STEEL-SN AU921400
- Shank Diameter: 0.367 in
- Shank Length: 2.4 in
- Square Size: 0.275 in
- Tap Drill Size: 0.4646 in
- Thread Length: 0.984 in
- Druck steel roll form tap is a universal design for the chipless production of internal threads, blind and though hole
- Lubrication grooves
- TiN coated for wear resistance
- ANSI/ANSI standard dimensions for overall length and shank size
- Taps with ANSI standard overall length dimensions are shorter than taps made to DIN standards
Standards/Approvals: ANSI/ANSI Specified|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For threading to the bottom of blind holes
Emuge Thread Forming Tap | Form C Reduced Shank | Series: Druck STEEL-SN AU921400 | Measurement System: Imperial | 1/2-13 | UNC | Modified Bottoming Chamfer | 0.984 in Thread Length | 3.38 in Overall Length | Right Hand Cutting | Class of Fit: 2BX | 0.367 in Shank Dia | 2.4 in Shank Length | 0.4646 in Tap Drill | 0.275 in Square Size | HSS-E | TiN Coated
