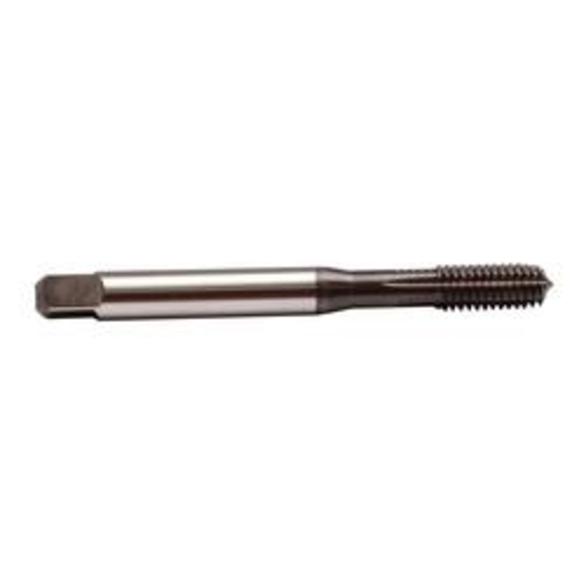

Emuge B0921000.0020 Druck 1-STEEL-SN B0921000 Form C Reinforced Shank Thread Forming Tap, M2x0.4 Thread
EMUGE B0921000.0020
$84.52
/ EA
Out of Stock
- Thread Size: M2x0.4
- Thread Standard: Coarse
- Finish/Coating: NT Coated
- Material: HSS-E
- Chamfer Type: Modified Bottoming
- Class of Fit: 6HX
- Cutting Direction: Right Hand
- Overall Length - Metric: 45 mm
- Series: Druck 1-STEEL-SN B0921000
- Shank Diameter - Metric: 2.8 mm
- Shank Length - Metric: 33 mm
- Square Size - Metric: 2.1 mm
- Tap Drill Size - Metric: 1.85 mm
- Thread Length - Metric: 7 mm
- The druck STEEL roll form tap is a universal design for the chipless production of internal threads, blind and through hole
- Lubrication grooves
- NT nitride surface hardening treatment
- DIN/DIN standard dimensions for overall length and shank size
Standards/Approvals: DIN/DIN Standard|DIN 13|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For threading to the bottom of blind holes
Emuge Thread Forming Tap | Form C Reinforced Shank | Series: Druck 1-STEEL-SN B0921000 | Measurement System: Metric | M2x0.4 | Coarse | Modified Bottoming Chamfer | 7 mm Thread Length | 45 mm Overall Length | Right Hand Cutting | Class of Fit: 6HX | 2.8 mm Shank Dia | 33 mm Shank Length | 1.85 mm Tap Drill | 2.1 mm Square Size | HSS-E | NT Coated
