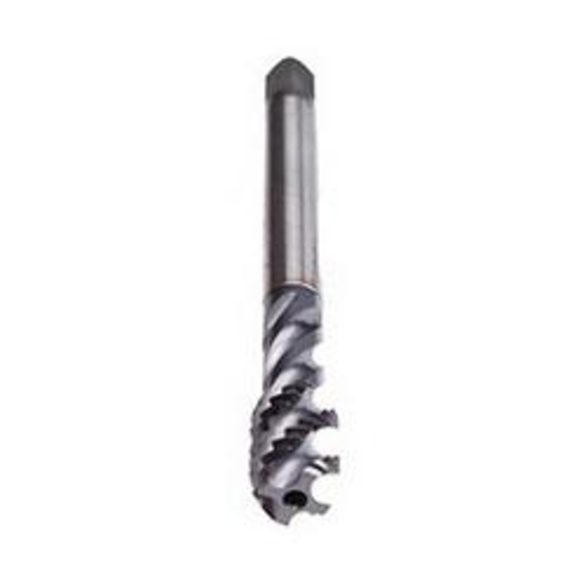

Emuge CU999400.5013 Enorm 2-Z/E-IKZ CU999400 Form E Reduced Shank Spiral Flute Tap, Right Hand Cutting, 1/2-13 Thread, Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, TiCN Coated, HSS-E
EMUGE CU999400.5013
$159.07
/ EA
Out of Stock
- Coolant Through: Yes
- Thread Size: 1/2-13
- Material: HSS-E
- Finish/Coating: TiCN Coated
- Number of Flutes: 4
- Flute Direction: Right Hand
- Class of Fit: 2B
- Chamfer Type: Bottoming
- Cutting Direction: Right Hand
- Overall Length: 4.331 in
- Series: Enorm 2-Z/E-IKZ CU999400
- Shank Diameter: 0.367 in
- Thread Length: 0.984 in
- Thread Standard: UNC
- The fast spiral flute (45 deg) provides good chip removal from blind holes
- IKZ - axial coolant hole design
- Z designates a tool design for CNC controlled machines with synchronous feed control
- TiCN coated for abrasion resistance and additional tool life
- DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
Standards/Approvals: DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For blind hole threads in long chipping materials
Emuge Spiral Flute Tap | Form E Reduced Shank | Series: Enorm 2-Z/E-IKZ CU999400 | Measurement System: Imperial | UNC | 1/2-13 | Bottoming Chamfer | 4 Flutes | HSS-E | TiCN Coated | Class of Fit: 2B | Right Hand Cutting | 0.984 in Thread Length | 4.331 in Overall Length | 0.367 in Shank Dia | Right Hand Flute Direction
