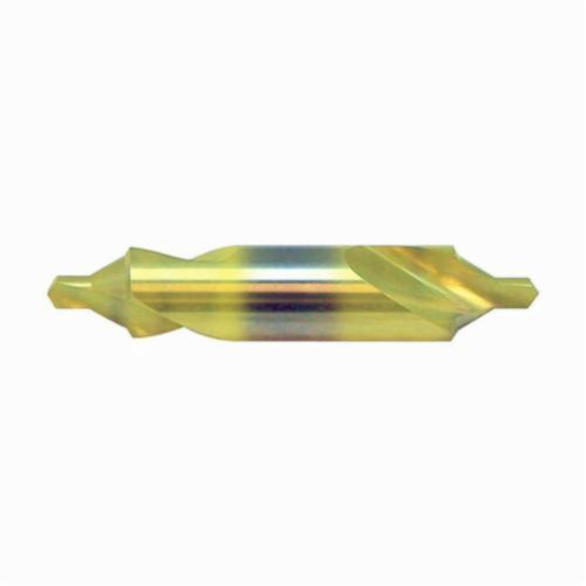

KEO 11500-TIN Bell Standard Double End Combined Drill and Countersink, 5/32 in Drill - Fraction, 0.1562 in Drill - Decimal Inch, 60 deg Included Angle, 118 deg Point Angle, HSS, TiN Coated
KEO 906-000-239
$22.05
/ EA
Out of Stock
- Material: High Speed Steel
- Included Angle: 60 deg
- Overall Length: 2-3/4 in
- Point Diameter - Decimal: 0.15625 in
- Point Diameter - Fractional: 5/32 in
- Point Diameter - Metric: 3.968 mm
- Type: Bell;Double End;Standard
- Applicable Material: Steel and Other Ferrous Materials
- Cutting Edge Material: High Speed Steel
- Diameter - Wire: #15
- Finish: TiN
- Point Angle: 118 deg
- Shank Diameter: 7/16 in
- Shank Type: Round
- Flute Type: Spiral
- Diameter - Fractional: 7/16 in
- Diameter - Decimal: 0.4375 in
- Diameter - Metric: 11.11 mm
- Shank Diameter - Metric: 11.11 mm
- Shank Diameter - Fractional: 7/16 in
- Shank Diameter - Decimal: 0.4375 in
- Bell type combined drill and countersinks are used for producing protected center holes in components or workpieces which require machining between centers
- Additional 120 deg included chamfer eliminates the risk of deforming the countersink seat
For producing center holes in components
Standards/Approval: ISO 9002, 9001:2008
KEO Combined Drill and Countersink | Bell Standard Double End | 5/32 in Drill Size - Fraction | 0.1562 in Drill Size - Decimal Inch | #15 Point Dia | 7/16 in Body Dia | 2-3/4 in Overall Length | 2 Flutes | Spiral Flute | 7/16 in Shank | Round Shank | 118 deg Point | 60 deg Included Angle | Right Hand Cutting | HSS Cutting Edge | HSS | TiN Coated | Applicable Materials: Steel and Other Ferrous Materials
