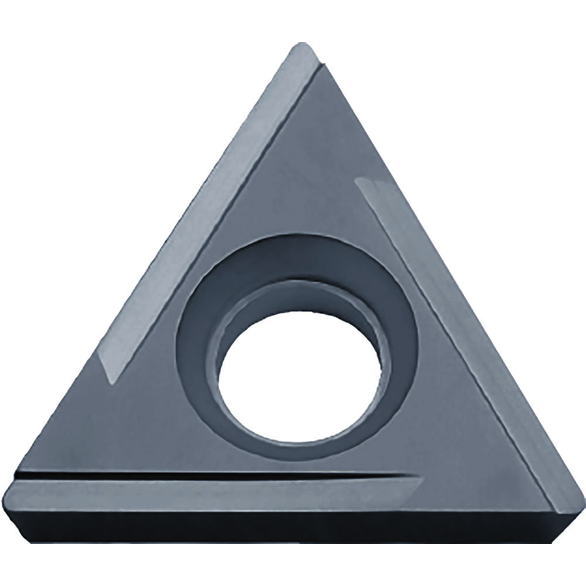

KYOCERA TPGH221RHKW10 3-Cutting Edge Indexable Turning Insert With 1-Sided Chipbreaker, Hole, 40 to 60 deg Countersink, ANSI Code: TPGH221RHKW10, TPGH Insert, Material Grade: N, S, K, #221 Insert, Triangle Shape, 11 Seat, Positive Rake, Right Hand Cutting
KYOIND TWE03743
$20.75
/ EA
- Finish/Coating: Uncoated/WC/Co Coated
- Insert Style: TPGH
- Insert Size: #221
- Material: Carbide
- Manufacturer's Grade: KW10
- Chipbreaker: H
- Corner Radius - Fractional: 1/64 in
- Cutting Direction: Right Hand
- Hole Diameter: 0.1299 in
- Included Angle: 60 deg
- Inscribed Circle - Fractional: 1/4 in
- ISO Code: TPGH110304R-H
- Material Grade: N, S, K
- Rake: Positive
- Relief Angle: 11 deg
- Seat Size: 11
- Shape: Triangle
- Thickness - Fractional: 1/8 in
- Type: 3-Cutting Edge
INSERT TPGH221RH KW10 CARBIDE TURNING
