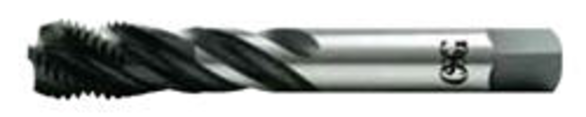

OSG 1311702301 M16x2.00, 2.5P - 3P, Right Hand, Spiral Flute Tap
OSG 1311702301
$113.71
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: M16-2
- Material: HSSE
- Finish/Coating: Steam Oxide
- Number of Flutes: 4
- Thread Limit: D17
- Chamfer Type: 2.5P-3P Modified Bottoming
- Cutting Direction: Right Hand
- Finish: Steam Oxide
- Helix Angle: 45 Degree
- Material Application: Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel and Stainless Steel
- Measurement System: Metric
- Overall Length: 110 mm
- Overall Length - Metric: 110 mm
- Series: 13117
- Shank Diameter - Decimal: 12.19 mm
- Shank Length - Metric: 94 mm
- Size: M16
- Thread Length: 1-13/16 in
- Thread Length - Metric: 16 mm
- Thread Standard: Metric Coarse
HY-PRO® HXL-W Taps Horizontal Tapping Solutions for the Wind Energy Industry
- Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth
- Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the work piece
Application: They are used for threading blind holes and have 2 to 2-1/2 threads.It is commonly used on low carbons, stainless steel and ferrous metals.
OSG 1311702301 M16x2.00 | 2.5P - 3P | Right Hand | D17 | Spiral Flute Tap
