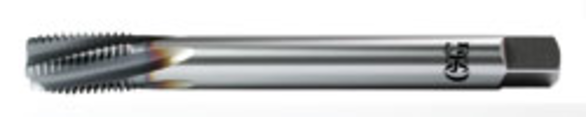

OSG 1311801608 M20x2.50, 4.5P - 5.5P, Right Hand, Spiral Flute Tap
OSG 1311801608
$206.75
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: M20-2.5
- Material: HSSE
- Finish/Coating: V-Coated
- Number of Flutes: 5
- Thread Limit: D18
- Chamfer Type: 4.5P-5.5P Plug
- Cutting Direction: Right Hand
- Helix Angle: 15 Degree
- Material Application: Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel and Stainless Steel
- Measurement System: Metric
- Overall Length: 140 mm
- Overall Length - Metric: 140 mm
- Series: 13118
- Shank Diameter - Decimal: 16.56 mm
- Shank Length - Metric: 67 mm
- Size: M20
- Thread Length: 30.00 mm
- Thread Length - Metric: 30 mm
- Thread Standard: Metric Coarse
- Finish: TiCN
HY-PRO® RXL-W is designed for large threading applications in ductile castings, such as turbine housings in the Wind Energy Industry.
- Designed for efficiently threading through and blind holes. They have 3 to 5 threads
- Titanium carbonitride (TiCN) is harder and more wear resistant than TiN
- HSSE material
- Increased wear resistance
- Spiral Point
- For through hole applications
- OSG V-coating
- Increased hardness, lubricity & wear resistance
- DIN overall length & extended overall length
- Provides greater reach capability
Application: Plug chamfers are the most commonly used chamferIt is commonly used on stainless steels, cast iron and aluminum alloys.Cast iron, Carbon Steel, Alloy Steels, Die Steel, Hardened Steel up to ~35 HrC Wind Energy Industry, Turbine Housing
OSG 1311801608 M20x2.50 | 4.5P - 5.5P | Right Hand | 6H+0.005 | D18 | Spiral Flute Tap
