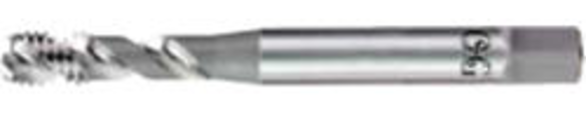

OSG 1311900903 M10x1.25, 2.5P - 3P, Right Hand, Spiral Flute Tap
OSG 1311900903
$46.32
/ EA
Out of Stock
- Coolant Through: No
- Thread Size: M10-1.25
- Material: HSSE
- Finish/Coating: Nitride Coated
- Number of Flutes: 3
- Class of Fit: JIS 2
- Thread Limit: D5
- Chamfer Type: 2.5P-3P Modified Bottoming
- Cutting Direction: Right Hand
- Finish: Nitride
- Helix Angle: 50 Degree
- Material Application: Aluminum and Cast Aluminum
- Measurement System: Metric
- Overall Length: 3-15/16 in
- Overall Length - Metric: 100 mm
- Series: 13119
- Shank Diameter - Decimal: 9.67 mm
- Shank Length - Metric: 61 mm
- Size: M10
- Thread Length: 12.00 mm
- Thread Length - Metric: 12 mm
- Thread Standard: Metric Fine
HY-PRO® AL DIN is a premium spiral flute tap for Alloy and Cast Aluminum.
- Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth
- Nitride is a thin, hard-shell coating that supports surface hardness of the tool
- HSSE material
- Increased wear resistance
- Spiral Flute
- For blind hole applications
- Nitride surface treatment
- Extra surface hardness for longer life
- DIN overall length
- Provides greater reach capability
- Inch & Metric
- Complete Offering
Application: They are used for threading blind holes and have 2 to 2-1/2 threads.It is commonly used where abrasive or wearing conditions exist.Aluminum Alloy, Cast Aluminum
OSG 1311900903 M10x1.25 | 2.5P - 3P | Right Hand | D5 | Spiral Flute Tap
