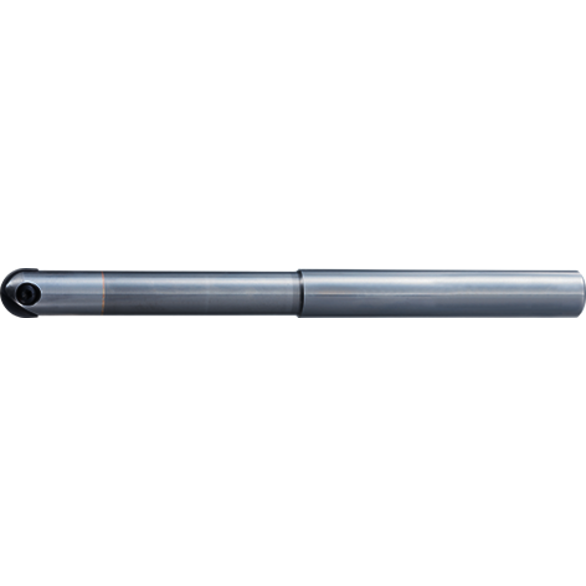

OSG 7801430 2-Teeth Indexable Ball Nose End Mill, ANSI Code: PFB-R080SS08-S100CS, 8 mm Dia Cutting, Right Hand Cutting, Carbide
OSG 7801430
$641.38
/ EA
Out of Stock
- Cutting Direction: Right Hand
- Series: 78014, S813HB
- Coolant Hole Diameter - Decimal: 0.0504 in
- Coolant Hole Diameter - Metric: 1.28 mm
- Cutting Diameter: 8 mm
- Cutting Diameter - Metric: 8 mm
- Drill Bit Size - Decimal: 0.3228 in
- Drill Bit Size - Metric: 8.2 mm
- Drill Point Length: 0.0547 in
- Finish: AlCrN
- Finish/Coating: TiAlN
- Flute Length: 3.1496 in
- Flute Length x Diameter Ratio: 8
- Functional Length: 4.7484 in
- Hand of Tool: R - Right
- Helix Angle: 30 deg
- Material: Carbide
- Maximum Depth: 2.6772 in
- Number of Flutes: 2
- Number of Inserts: 2
- Overall Length: 100 mm, 4.8031 in
- Overall Length - Metric: 100 mm
- Shank Diameter: 8 mm
- Shank Diameter - Decimal: 0.3937 in
- Shank Length: 1.5748 in, 80 mm
- Shank Length - Metric: 80 mm
- Shank Type: Cylindrical/Short
- Type: Type N
- Length Type: Short Length
- Shank Diameter - Metric: 8 mm
EM PFB-R080SS08-S100CS
