SUMITOMO

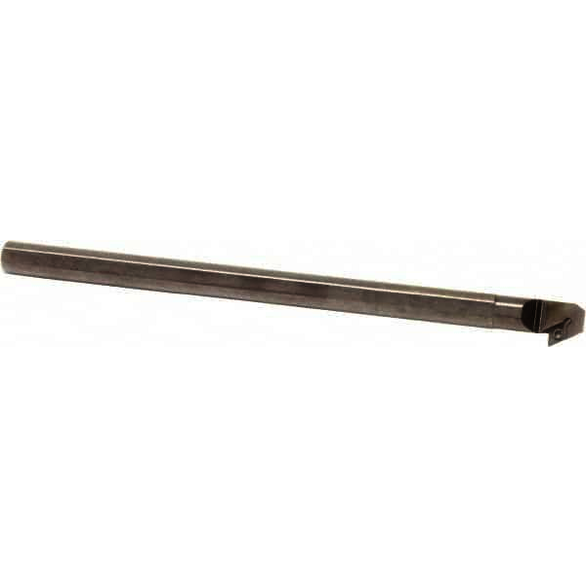

Sumitomo Electric Carbide U101915 0.9800 in Min Bore, Right Hand, A-SDXP, Indexable Boring Bar
SUMI U101915
$397.48
/ EA
- Minimum Bore Diameter - Decimal: 0.9800 in
- Series: A-SDXP
- Overall Length: 10.0000 in
- Shank Diameter: 3/4 in
- Shank Diameter - Decimal: 0.7500 in
- Shank Diameter - Fractional: 3/4 in
- Insert Compatibility: DPMT 32.52
- Insert Inscribed Circle: 3/8 in
- Insert Thickness: 5/32 in
- Special dampener mechanism eliminates chatter
- Up to 6X L/D overhang (depth / bar diameter)
- Cost effective solution to carbide bars when deep hole boring
- Available in both coolant-through and non-coolant-through
- Effectively rough bores deep holes
- Bars available with CCMT, TCMT and TPMT style inserts
Standard/Approvals:A12-SDXPR3
Sumitomo Electric Carbide U101915 0.9800 in Min Bore | Right Hand | A-SDXP | 10.0000 in | 3/4 in | Indexable Boring Bar
