SUMITOMO

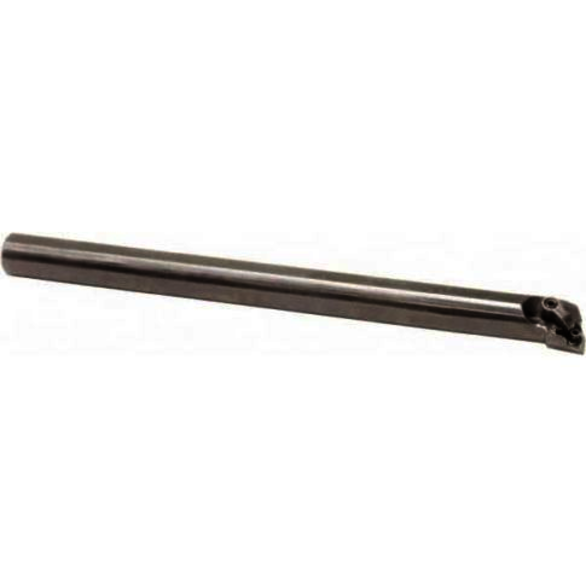

Sumitomo Electric Carbide U101932 1.2000 in Min Bore, Left Hand, A-MWLN, Indexable Boring Bar
SUMI U101932
$548.35
/ EA
- Minimum Bore Diameter - Decimal: 1.2000 in
- Series: A-MWL
- Overall Length: 12.0000 in
- Shank Diameter - Decimal: 1.0000 in
- Insert Compatibility: WNMG332
- Insert Inscribed Circle: 3/8 in
- Insert Thickness: 3/16 in
- Special dampener mechanism eliminates chatter
- Up to 6X L/D overhang (depth / bar diameter)
- Cost effective solution to carbide bars when deep hole boring
- Available in both coolant-through and non-coolant-through
- Effectively rough bores deep holes
- Bars available with CCMT, TCMT and TPMT style inserts
Standard/Approvals:A16MWLNL3
Sumitomo Electric Carbide U101932 1.2000 in Min Bore | Left Hand | A-MWLN | 12.0000 in | 1.0000 in | Indexable Boring Bar
