SUMITOMO

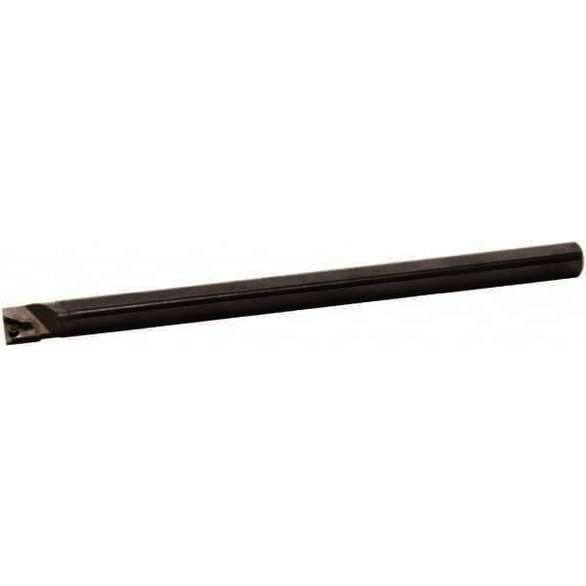

Sumitomo Electric Carbide U101949 1.2000 in Min Bore, Right Hand, A-STFC, Indexable Boring Bar
SUMI U101949
$513.79
/ EA
- Minimum Bore Diameter - Decimal: 1.2000 in
- Series: A-STFC
- Overall Length: 12.0000 in
- Shank Diameter - Decimal: 1.0000 in
- Insert Compatibility: TCMT32.52
- Insert Inscribed Circle: 3/8 in
- Insert Thickness: 5/32 in
- Special dampener mechanism eliminates chatter
- Up to 6X L/D overhang (depth / bar diameter)
- Cost effective solution to carbide bars when deep hole boring
- Available in both coolant-through and non-coolant-through
- Effectively rough bores deep holes
- Bars available with CCMT, TCMT and TPMT style inserts
Standard/Approvals:A16STFCR3
Sumitomo Electric Carbide U101949 1.2000 in Min Bore | Right Hand | A-STFC | 12.0000 in | 1.0000 in | Indexable Boring Bar
