SUMITOMO

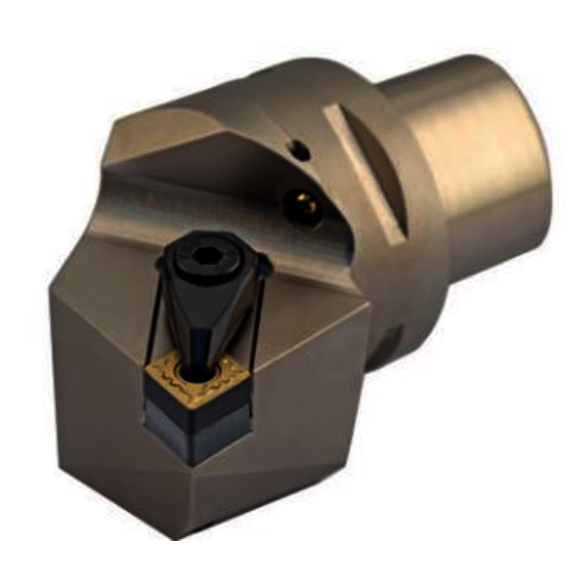

Sumitomo Electric Carbide U105735 Hand of Holder Right Hand, Toolholder Style J, Rake Negative, Indexable Turning Toolholder
SUMI U105735
$674.97
/ EA
- Insert Compatibility: DN_ _ 33
- Shank Width: 63.00 mm
- Rake: Negative
- Overall Length: 65.00 mm
- Shank Height: 63.00 mm
- Lead Angle: -3 ±1 Degree
- Head Length: 65.00 mm
- Series: PSC-DDJN
- The Sumitomo polygon shank holders enable an extremely high stiffness connection between machine and tool
- The conical polygon can take high bending and torque moments based on the combination of the face contact to the spindle
- This self-guiding coupling system offers high precision and repeatability
- While using this easy and quick coupling system it is possible to gain higher machine utilization time as the set-up and tool change times are reduced
- The compact design and the high stiffness connection to the spindle offer a versatile use on multi-task machines, machining centers and turning-milling centers
- Monoblock system
- No additional interfaces
- Precise positioning; self-guiding with high repeatability
- High stiffness supported by face contact of holder
- Carbide shims to prevent holders from damage
- Simple tool holder change and low-maintenance operation
- Internal coolant supply directly to the cutting edge
- Polygon shank and insert seat hardened for long holder life
Standard/Approvals:PSC63-DDJNR-45065-33
Sumitomo Electric Carbide U105735 Hand of Holder Right Hand | Toolholder Style J | Rake Negative | -6 Degree | PSC-DDJN | Indexable Turning Toolholder
