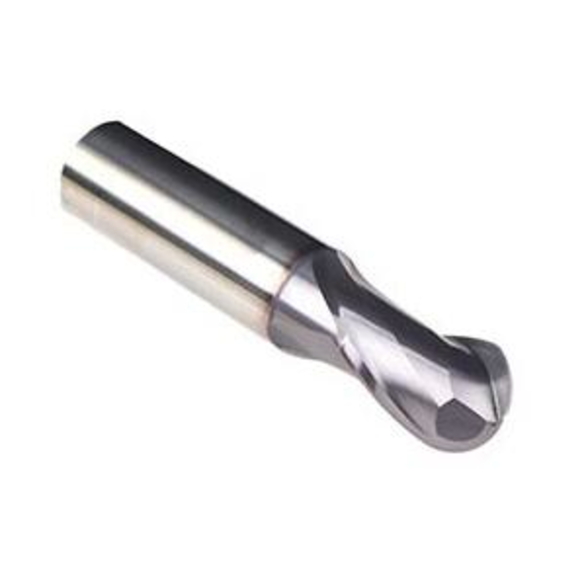

Emuge 1877A.01875 Ball End Mills 3/16in Milling Dia, 3/8in LOC, 2-1/4in OAL, 2 Flutes, Carbide
EMUGE 1877A.01875
$98.45
/ EA
Out of Stock
- Mill Diameter: 3/16 in
- Mill Diameter - Fractional: 3/16 in
- Number of Flutes: 2
- Length of Cut: 3/8 in
- Material: Carbide
- Overall Length: 2-1/4 in
- Shank Diameter: 1/4 in
- Shank Diameter - Fractional: 1/4 in
- Shank Diameter - Metric: 0.25 in
- Finish/Coating: TiAlN Coated
- Helix Angle: 30 deg
- Cutter Diameter: 3/16 in
- Cutting Direction: Right Hand
- Length of Cut - Fractional: 3/8 in
- Overall Length - Fractional: 2-1/4 in
- Series: Hard-Cut 1877A
- Shank Diameter Metric: 0.25 in
- Shank Type: Cylindrical
- Flute Type: Spiral
- Cutter Diameter - Fractional: 3/16 in
- The Hard-Cut ball nose series of carbide end mills is specifically developed for machining hardened materials well suited for the die and mold industry and are manufactured with extremely tight tolerances
- Machining hard materials up to 66 HRc
- Patented chisel edge contour
- Designed for milling hardened materials up to 44-66 Rc
- Short flute
- TiAlN coated for heat and wear resistance
Standards/Approvals: ASME B94.19|DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For finishing applications
Emuge Ball Nose End Mill | Extra Short Length | Series: Hard-Cut 1877A | 3/16 in Diameter Cutter | 2-1/4 in Overall Length | 3/8 in Maximum Depth of Cut | 2 Flutes | Spiral Flute | 1/4 in Shank Diameter | Right Hand Cutting Direction | 30 deg Helix Angle | Cylindrical Shank | Carbide | TiAlN Coated
